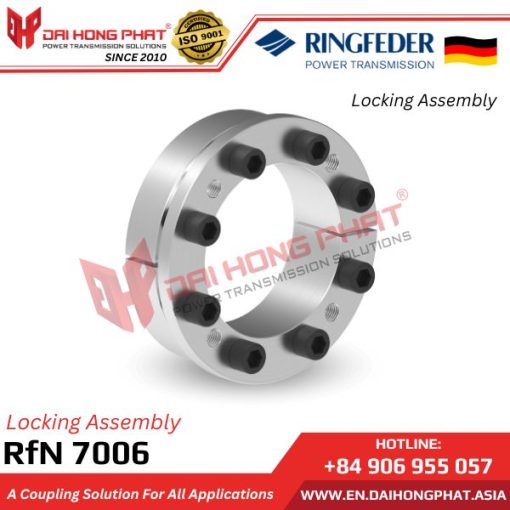

RfN 7006 LOCKING ASSEMBLY

Locking Assemblies RfN 7006, Two piece design with single taper has flange to position the component on the shaft to maintain axial position during mounting.

Description

5/5 - (3 votes)

1. Why choose Dai Hong Phat as the supplier for the Ringfeder RfN 7006 locking assembly?

In the Vietnamese market, there is a significant demand for drive components in the industrial sector. Therefore, Dai Hong Phat has become a reputable supplier and authorized distributor importing 100% genuine products from Ringfeder. Ringfeder is a well-known German brand renowned in the European market for manufacturing and supplying drive components.

The outstanding benefits when purchasing Locking Assemblies RfN 7006 products from Dai Hong Phat Corp. include:

– Procuring genuine Ringfeder locking assemblies RfN 7006 directly imported from the manufacturer.
– Safeguarding against risks and counterfeit products.
– Providing complete CO/CQ documentation for customers.
– Having readily available stock for quick delivery.
– Supplying technical drawings upon request.
– Dedicated and experienced technical support team.
– Offering free consultation for optimal solutions tailored to customers’ factories.
– Providing authentic product catalogues.
– Offering free customization of technical specifications and dimensions.
– Nationwide 24/7 delivery service to minimize downtime.
– Operating a professional machining workshop for custom requirements.

2. Dai Hong Phat Corp is the authorized representative specializing in supplying all Ringfeder products throughout Vietnam:

Established in 2010, Dai Hong Phat Corp. provides transmission equipment from major brands such as KTR, Westcar, JAC, and others. In addition, Dai Hong Phat Corp. collaborates with Ringfeder to become the authorized distributor of 100% genuine products in Vietnam and the Southeast Asia region (Authorized Distributor for Ringfeder Products in Vietnam, Laos, Cambodia, Philippines, …).

3. Characteristics of Ringfeder RfN 7006:

– The locking assemblies RfN 7006 are manufactured by Ringfeder/Germany.
– Self-centering capability.
– No shaft displacement.
– Inner diameter d: 19-400 mm.
– Outer diameter D: 47-495 mm.
– Total length L: 34-138 mm.
– Torque T: 270-375,945 Nm.

View more product “Locking Assemblies RfN 7004“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Locking Assemblies RfN 7006:

Nhờ lực ma sát lớn, khớp khóa chặt trục và thiết bị với nhau đơn giản chỉ cần vặn vài ốc vít, có kết cấu mạnh mẽ đảm bảo bánh răng, bánh xích,.. không bị trượt khỏi trục và tự định tâm. Khớp khóa có khả năng truyền mô-men xoắn bền bỉ và còn đáng tin cậy cả lực dọc và lực ngang cũng như lực mô-men.

5. Functions, Technical of Locking Assemblies RfN 7006:

The self-centering and self-aligning locking assembly is suitable for applications where there is high radial load, such as mining. Its design ensures easy, robust, and safe installation without the risk of slippage due to sufficient frictional force. However, the larger flange diameter may reverse the axial displacement of the hub during installation. This principle is also applicable to belt pulleys.

Technical of Ringfeder RfN 7006:

Catalogue Ringfeder RfN 7006				Installation Ringfeder RfN 7006

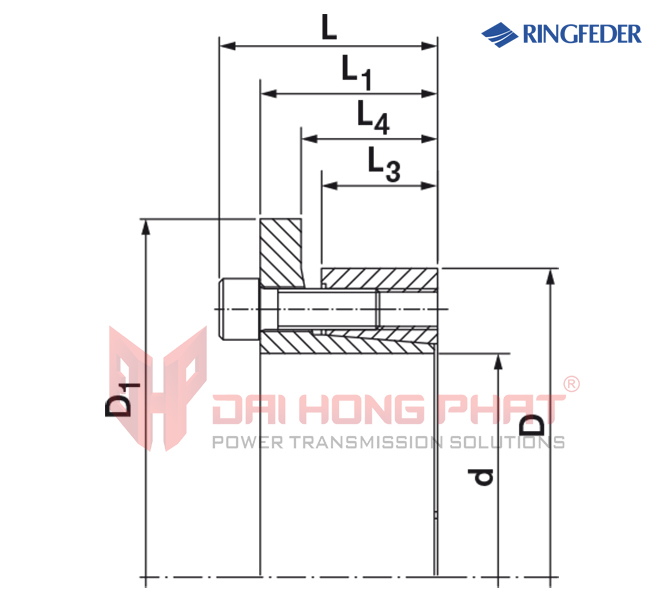

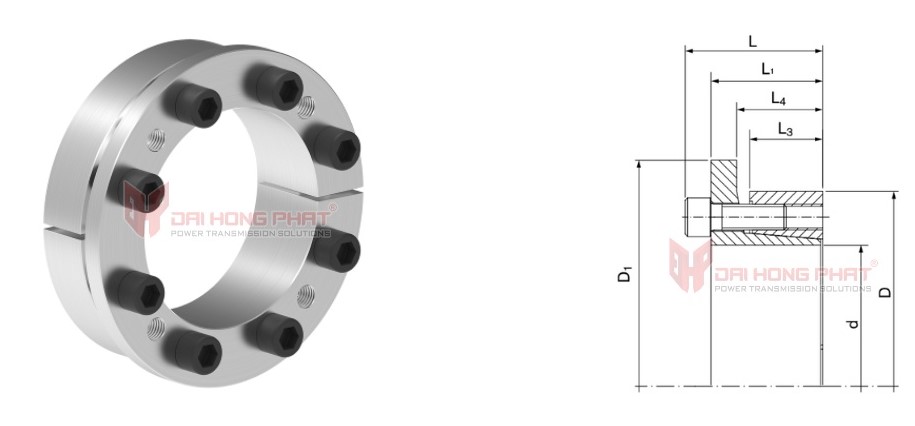

*Technical drawing of Locking Assemblies RfN 7006*

Dimensions [mm]				T	T_A	Fax
dxD	D1	L	L1	[Nm]		[KN]
19×47	56	34	28	270	17	28
20×47	56	34	28	280	17	28
22×47	56	34	28	310	17	28
24×50	59	34	28	400	17	32
25×50	59	34	28	440	17	34
28×55	64	34	28	490	17	34
30×55	64	34	28	530	17	34
32×60	69	34	28	750	17	46
35×60	69	34	28	820	17	46
38×65	74	34	28	890	17	46
40×65	74	34	28	940	17	46
42×75	84	41	33	1600	41	70
45×75	84	41	33	1720	41	70
50×80	89	41	33	1890	41	74
55×85	94	41	33	2400	41	76
60×90	99	41	33	2650	41	76
65×95	104	41	33	3190	41	80
70×110	119	50	40	4910	83	130
75×115	124	50	40	5150	83	130
80×120	129	50	40	5490	83	130
85×125	134	50	40	6620	83	140
90×130	139	50	40	6960	83	140
95×135	144	50	40	8190	83	160
100×145	154	56	44	10100	83	170
110×155	164	56	44	11000	145	170
120×165	174	56	44	13600	145	200
130×180	189	64	52	19000	145	250
140×190	199	68	54	21800	230	270
150×200	209	68	54	25600	230	320
160×210	219	68	54	26100	230	320
170×225	234	78	64	30300	230	340
180×235	244	78	64	32000	230	340
190×250	245	78	64	50000	230	525
200×260	269	78	64	52800	230	528
220×285	295	91	75	64500	355	585
240×305	315	91	75	88000	355	730
260×325	335	91	75	114000	355	880
280×355	365	105	87	123100	480	880
300×375	384	102	84	148250	480	985
320×405	414	121	101	182500	690	1140
340×425	434	121	101	218000	690	1280
360×455	464	137	115	290000	930	1600
380×475	484	137	115	305000	930	1600
400×495	504	137	115	355000	930	1775

Customers purschasing Ringfeder RfN 7006 at Dai Hong Phat.corp enjoy the following benefits?

– Established since 1922 and with nearly 100 years of professional manufacturing experience in the transmission and shock absorption industry, Ringfeder has acquired invaluable expertise and superior techniques in providing top-notch products and services to customers.
– Dai Hong Phat corp. has partnered with Ringfeder from Germany, a manufacturer of high-quality transmission equipment and shock absorption technology.
– Our company, commits to offering Locking Assemblies RfN 7006 products that are 100% genuine, brand new, with certification papers, and clear origin.
– The core value of our cooperation aims to bring significant benefits to customers regarding shaft coupling solutions, not only in Vietnam but also in countries across the Southeast Asian region. The Locking Assemblies RfN 7006 distributed by Dai Hong Phat are genuine and authentic.
