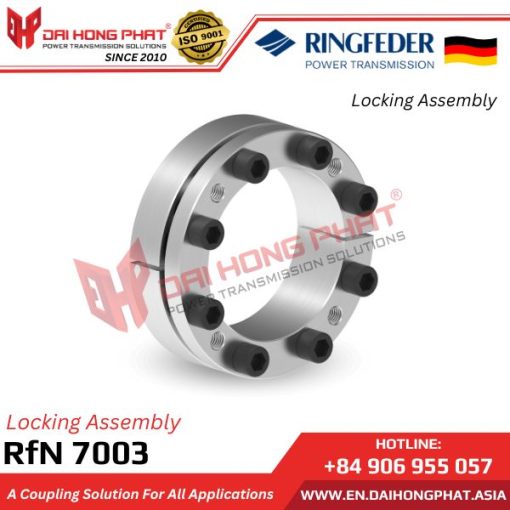

RfN 7003 LOCKING ASSEMBLY

Locking Assemblies RfN 7003, Two piece design with slit and single taper and without flange can be completely recessed within a component’s hub. Axial position of component not fixed and may move during installation.

Category: Ringfeder Locking Assemblies Tags: Mav Shrink Discs, Shaft hub connections, Power transmission components, Locking devices, Ringfeder Cambodia, Ringfeder Philippines, Ringfeder Laos, Ringfeder distributors, Locking Assemblies RfN 7003, LOCKING ELEMENTS, MAV power lock, Ringfeder Germany locking assemblies, Ringfeder Shrink Discs, power lock, LOCKING ASSEMBLY, RfN 7003, Ringfeder RfN 7003, Ringfeder

Description

5/5 - (4 votes)

1. Why choose Dai Hong Phat Corp. as your supplier for Locking Assemblies Ringfeder?

– Our customers will have the opportunity to purchase genuine Locking Assemblies RfN 7003 imported directly from Ringfeder Germany.
– Dai Hong Phat will safeguard you against risks by providing genuine products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for Locking Assemblies Ringfder products will be provided to our customers.
– With a readily available stock of Locking Assembly, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine products from the Ringfeder brand.
– Our customers will receive the official Ringfeder shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for Ringfeder RfN 7003 products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Ringfeder RfN 7003 in Vietnam:

– Dai Hong Phat Company is the exclusive importer and distributor of all 100% genuine Ringfeder products throughout Vietnam and the Southeast Asia region. (Authorized Distributor for Ringfeder Products in Vietnam, Laos, Cambodia, Philippines, …).
– With over 15 years of reputable service, Dai Hong Phat ensures customers acquire Locking Assemblies RfN 7003 that are 100% authentic, high-quality, and competitively priced in the market.

3. Characteristics of Locking Assemblies RfN 7003:

– Locking Assemblies RfN 7003 are manufactured by Ringfeder/Germany.
– Inner diameter d: 10 – 400mm.
– Outer diameter D: 47 – 495mm.
– Total length L: 34 – 137mm.
– Torque T: 355 – 512.635Nm.
– Easy to assemble and disassemble.

View more products “Locking Assemblies RfN 7061“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Locking Assemblies RfN 7003:

The Locking Assemblies RfN 7003 are known for its easy assembly and disassembly, durability, and suitability for applications transmitting axial loads and operating at high speeds. It provides excellent concentricity between tightly clamped components. This friction-locking type coupling securely locks shafts, ensuring a simple, robust connection without slippage thanks to its high frictional force.
Widely used across various industrial plants, the Ringfeder RfN 7003 locking assembly is trusted by customers and offers excellent solutions in terms of both economy and warranty period.

5. Technical of Locking Assemblies Ringfeder RfN 7003:

Khớp khóa trục côn Ringfeder có khả năng tự định tâm, tự định vị trong quá trình lắp đặt về phía đầu vít phù hợp cho các ứng dụng với tải trọng hướng tâm cao như khai thác mỏ. Với thiết kế của khớp khóa giúp thiết bị hoạt động dễ dàng, mạnh mẽ và an toàn mà không lo bị trượt do hình thành được lực ma sát đủ mạnh.

Thông số kỹ thuật khớp khóa trục Ringfeder RfN 7003:

Catalogue Khớp khóa trục Ringfeder RFN 7003				Hướng dẫn lắp đặt Khớp khóa trục Ringfeder RFN 7003

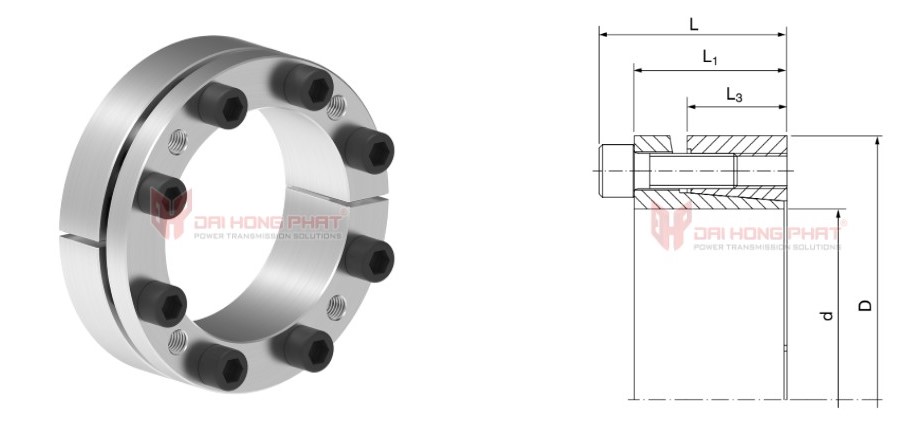

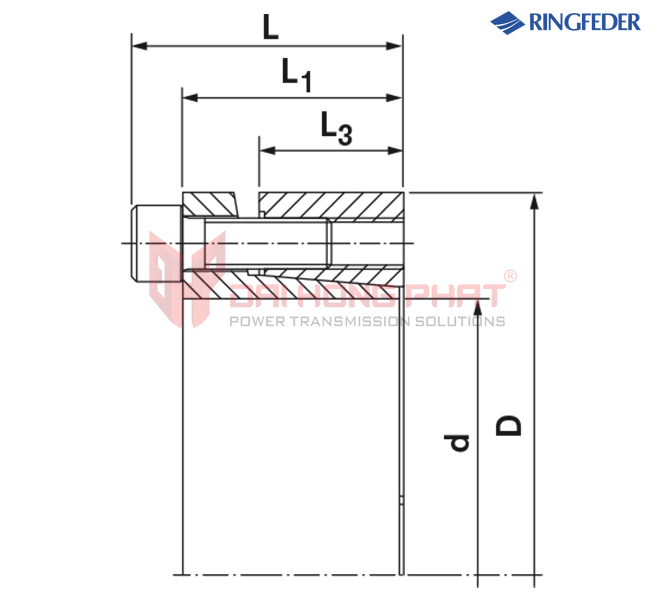

*Technical drawing of Locking Assemblies RfN 7003*

View more product “Locking Elements RfN 8006”

Dimensions [mm]			T	Fax	TA	pW	pN
dxD	L	L1	[Nm]	[KN]	[Nm]	[N/mm2]
19×47	34	28	355	31	14	280	120
20×47	34	28	360	33	14	280	120
22×47	34	28	400	33	14	260	125
24×50	34	28	440	36	14	245	120
25×50	34	28	560	36	14	280	140
28×55	34	28	625	36	14	250	130
30×55	34	28	650	36	14	235	130
32×60	34	28	950	50	14	290	150
35×60	34	28	1050	50	14	290	150
38×65	34	28	1140	50	14	250	145
40×65	34	28	1200	50	14	230	145
42×75	41	33	2030	70	35	305	170
45×75	41	33	2180	70	35	285	170
48×80	41	33	2330	80	35	270	160
50×80	41	33	2430	85	35	260	160
55×85	41	33	3050	100	35	270	175
60×90	41	33	3350	100	35	245	165
65×95	50	40	4080	110	35	255	175
70×110	50	40	6280	160	70	280	180
75×115	50	40	6680	160	70	260	170
80×120	50	40	7130	160	70	250	170
85×125	50	40	8750	180	70	260	180
90×130	50	40	9080	180	70	250	170
95×135	50	40	10580	200	70	260	180
100×145	56	44	13380	240	125	270	190
110×155	56	44	14580	240	125	240	180
120×165	56	44	17880	250	125	250	180
130×180	64	52	25950	350	125	240	170
140×190	68	54	26950	350	190	210	150
150×200	68	54	32950	400	190	230	170
160×210	68	54	37950	450	190	230	170
170×225	78	64	44950	500	190	180	130
180×235	78	64	46950	500	190	170	130
190×250	78	64	64059	607	190	141	146
200×260	78	64	67430	607	190	134	141
220×285	88	72	82211	710	290	130	132
240×305	88	72	112106	848	290	149	154
260×325	88	72	145737	1017	290	165	174
280×355	102	84	168715	1094	400	139	143
300×375	102	84	203362	1230	400	146	152
320×405	121	101	287020	1627	580	150	151
340×425	121	101	355785	1899	580	165	168
360×455	137	115	395461	1994	780	142	142
380×475	137	115	487003	2326	780	157	158
400×495	137	115	512635	2326	780	150	152
