1. Dai Hong Phat Corp. is the specialized representative providing all products of Italgiunti Cardan Couplings across Vietnam:
– With over 60 years of experience, Italgiunti was founded by two renowned engineers, Franco Rabaglioni and Giancarlo Cietto, who have extensive expertise in manufacturing machinery equipment. Over the years, the brand has expanded its presence across continents.
– Dai Hong Phat Company is the authorized distributor of Italgiunti Italy in Vietnam, supplying genuine Italgiunti Universal Joint Couplings Series 38-IG of high quality.
– Dai Hong Phat Company commits to over 10 years of reliability, ensuring to provide customers with 100% genuine Cardan coupling products of high quality and the best prices on the market.
2. Characteristics of the Universal Joint Couplings Seris 38-IG:
– Italgiunti Universal Joint Couplings Series 38-IG are manufactured by Italgiunti/Italy.
– The Cardan shaft coupling allows for smooth and quiet transmission of torque.
– TK: standard torque: 4.000 Nm.
– TCS: Functional limit torque: 6.500 Nm
– TDW: Reversing fatigue torque: 2100 Nm.
– The coupling shaft comes in various designs, including single, double, 2-part, or 3-part configurations.
– The length can be customized according to the requirements of machinery and equipment.
– It is constructed from two or more cardan shafts combined with one or more cardan coupling joints.
– The Cardan Shaft Size 38-IG is installed at the intermediate position between the driving and driven shafts without being aligned straight on the shaft.
– Made from steel material with excellent resistance to wear, corrosion, or commonly known as stainless steel.
– It offers good vibration resistance and effective impact absorption.
– The 38-IG Cardan shaft combines the structural features of a basic shaft coupling while incorporating the advantages of a high-quality Cardan joint.
View more product “Italgiunti Universal Joint Series 2040“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Universal Joint Couplings Series 38-IG:
The Universal Joint Couplings Series 38-IG is widely applied across various industries and machinery for the smooth and efficient transmission of torque while accommodating misalignments and vibrations. Common applications include automotive drivetrains, industrial machinery, agricultural equipment, marine propulsion systems, construction machinery, mining operations, material handling systems, and renewable energy systems. These couplings offer versatility, reliability, and flexibility, making them indispensable components in a wide range of power transmission applications.

Italgiunti Universal Joint Couplings Series 38-IG
View more product “Italgiunti Universal Joint Series 2035“

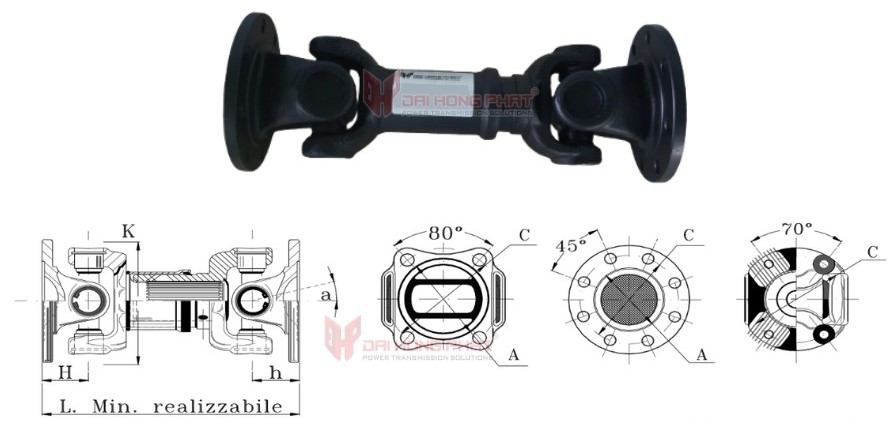

4. Technical drawing of the Universal Joint Couplings Series 38-IG:
| Catalogue Cardan Size 38-IG |
Installation Cardan Size 38-IG |
||||||

|
Ø U-JOINT |
Max angle short coupling |
Ø SPLINE |
MAX SLIP |
SWING DIAMETER K |
|
38×115,9 |
11° |
55×2,5 Din 5480 |
20 |
145 |
|
38×115,9 |
14° |
51×2,5 Din 5480* |
30 |
145 |
|
IG CODE |
SERIES |
Ø FLANGE |
HOLING |
Ø SPIGOT A – h7 |
SPACING C |
H – h |
ANGLE MAX. |
L. MIN LENGTH |
|
551017/IG |
1410 |
118 |
4×12,20 |
69,85 |
95,27 |
50 |
11° |
225 |
|
551018*/IG |
1410 |
118 |
4×12,20 |
69,85 |
95,27 |
50 |
16° |
265 |
|
551040/IG |
1535 |
150 |
4×14,20 |
95,25 |
120,67 |
40 |
7° |
225 |
|
551044*/IG |
1535 |
150 |
4×14,20 |
95,25 |
120,67 |
40 |
6° |
265 |
5. Why choose Dai Hong Phat as your supplier for Italgiunti Cardan Shaft Couplings?
– You will be able to purchase 100% genuine Italgiunti Universal Joint Couplings Series 38-IG directly imported from Italhiunti Italy by Dai Hong Phat.
– Customers can rest assured as Dai Hong Phat will protect you from risks and counterfeit products of Cardan Size 38-IG.
– We will provide complete CO/CQ documentation for the Cardan shaft couplings.
– The Cardan shaft couplings are always available in Dai Hong Phat’s warehouse, ensuring swift delivery to customers.
– Dai Hong Phat will provide technical drawings of the purchased Cardan joints upon request.
– Our dedicated technical team is always available to provide attentive support and advice to customers regarding shaft couplings.
– Dai Hong Phat is ready to offer free consultations on optimal solutions for your plant’s needs regarding genuine Universal Joint Couplings Series 38-IG products from the Italgiunti Italy brand.
– Customers will receive the official catalogue of the Cardan joint couplings from Dai Hong Phat.
– We offer free customization of technical specifications and sizes of the coupling products according to customer requirements.
– Dai Hong Phat provides nationwide 24/7 delivery, ensuring minimal downtime for your machinery.
– Our professional workshop at Dai Hong Phat can customize products according to your specific requirements.
