1. Why choose Dai Hong Phat as the supplier of Internal Clamping Set Clampex KTR 206?
– You will buy 100% genuine conical shaft lock products imported directly from KTR Germany by Dai Hong Phat.
– Dai Hong Phat will protect your risks against counterfeit products.
– Dai Hong Phat’s couplings have full CO/CQ documents.
– Genuine products are always available in stock, so our company will deliver quickly.
– Dai Hong Phat will provide you with technical drawings (upon request).
– Dedicated support and advice to customers about shaft lock products.
– Free consultation on optimal solutions for your factory.
– Dai Hong Phat will provide the genuine Catalogue of the Clampex KTR 206 product.
– Free conversion of product specifications and dimensions.
– Dai Hong Phat Company delivers nationwide 24/7, helping you to rest assured and minimize machine downtime.
– Dai Hong Phat Company has a professional fine-tuning workshop according to customers’ specific requirements related to genuine Clampex KTR 203 products from the KTR brand.
2. Dai Hong Phat Corp. is a representative specializing in providing allInternal Clamping Set Clampex KTR 206 throughout Vietnam:
– Dai Hong Phat Company is an authorized distributor for coupling KTR Germany in Vietnam.
– Dai Hong Phat Company is committed to more than 10 years of prestige, ensuring that customers buy 100% genuine Internal Clamping Set Clampex KTR 206 products with high quality and the best price on the market.
Certificate of Dai Hong Phat as the Authorised Distributor of KTR Germany in Vietnam
3. Features of Clampex KTR 206 taper shaft lock:
– Manufacturer: KTR/Germany.
– Working environment: -20oC to + 160oC
– Self-centering shaft lock.
– Shaft center connection without kickback.
– Internal Clamping Set Clampex KTR 206 is suitable for large shaft and center tolerances.
– Capable of transmitting torque up to 342,000 Nm.
– CLAMPEX KTR 206 is the compact alternative to the CLAMPEX KTR 201 internal clamping set.
– Easy disassembly thanks to simple removal of clamping screws.
4. Applications of Clampex KTR 206 shaft lock:
KTR Clamping Sets is a high quality product of KTR Germany. Clampex KTR 206 shaft lock is widely used in factories.
+ Chain wheel application.
+ Lever.
+ Pulley.
+ Sliding gear mechanism.
+ Belt drum.
+ Running wheel.
+ Cable pulley.
View more product “Clampex KTR 130 Internal Clamping Set”
View more product “Clampex KTR 201 Internal Clamping Set”
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
5. Technical specifications of External Clamping Set Clampex KTR 206:
| Catalogue Clampex KTR 206 |
Installation Clampex KTR 206 |
||||||
 |
|

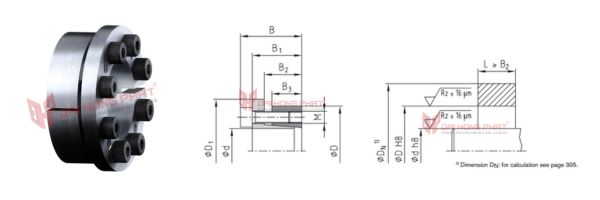

Technical drawing of Internal Clamping Set Clampex KTR 206
| KTR CLAMPEX 206 | ||||||||
| d x D [mm] | Transmittable Torque or Axial force |
Clamping screws M |
Dimensions [mm] | Weight [kg] | ||||
| B | B1 | B2 | B3 | D1 | ||||
| 18 x 47 | 290 | M6 | 34 | 28 | 22 | 17 | 53 | 0,3 |
| 19 x 47 | 300 | M6 | 34 | 28 | 22 | 17 | 53 | 0,3 |
| 20 x 47 | 320 | M6 | 34 | 28 | 22 | 17 | 53 | 0,3 |
| 22 x 47 | 350 | M6 | 34 | 28 | 22 | 17 | 53 | 0,3 |
| 24 x 50 | 390 | M6 | 34 | 28 | 22 | 17 | 56 | 0,3 |
| 25 x 50 | 400 | M6 | 34 | 28 | 22 | 17 | 56 | 0,3 |
| 28 x 55 | 450 | M6 | 34 | 28 | 22 | 17 | 61,4 | 0,4 |
| 30 x 55 | 490 | M6 | 34 | 28 | 22 | 17 | 61,4 | 0,3 |
| 32 x 60 | 700 | M6 | 34 | 28 | 22 | 17,5 | 67 | 0,3 |
| 35 x 60 | 760 | M6 | 34 | 28 | 22 | 17,5 | 67 | 0,4 |
| 38 x 65 | 820 | M6 | 34 | 28 | 22 | 17,5 | 72 | 0,5 |
| 40 x 65 | 870 | M6 | 34 | 28 | 22 | 17,5 | 72 | 0,4 |
| 42 x 75 | 1700 | M8 | 41 | 33 | 25 | 20 | 84 | 0,7 |
| 45 x 75 | 1800 | M8 | 41 | 33 | 25 | 20 | 84 | 0,7 |
| 48 x 80 | 1900 | M8 | 41 | 33,5 | 24 | 20 | 89 | 0,8 |
| 50 x 80 | 2000 | M8 | 41 | 33,5 | 24 | 20 | 89 | 0,8 |
| 55 x 85 | 2200 | M8 | 41 | 33,5 | 24 | 20 | 94 | 0,9 |
| 60 x 90 | 2400 | M8 | 41 | 33,5 | 24 | 20 | 99 | 0,9 |
| 65 x 95 | 2600 | M8 | 41 | 33,5 | 24 | 20 | 104 | 0,9 |
Your benefits when buying KTR shaft lock at Dai Hong Phat company?
– Established in 1952 and operating for many years, KTR has strongly developed in coupling products for heavy industry.
– Dai Hong Phat has cooperated with partner KTR from Germany, a leading manufacturer of transmission equipment in Europe and around the world.
– Dai Hong Phat commits that Clampex KTR 206 is a 100% genuine product, new quality, with clear certificates and origins of the product.
– The core value of cooperation is to bring great benefits to customers with optimized solutions for shaft locking products, not only in Vietnam but also in countries in the Southeast Asian region. The Internal Clamping Set Clampex KTR 206 product is officially distributed by Dai Hong Phat Company.
