Let’s learn about Ringfeder Servo Couplings GWE 5117 with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Servo Couplings GWE 5117 products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam
2. Characteristics of the Elastomer Jaw Couplings GWE 5117:
– The Elastomer Jaw Couplings GWE 5117 are manufactured by Ringfeder/Germany.
– Lightweight coupling.
– The Ringfeder GWE 5117 is a flexible, torsionally soft coupling with a compact design featuring an aluminum clamp hub as well as an expanding mandrel shaft. Its inner conical shape is made of steel to transmit torque through frictional locking on the hollow shaft.
– The Ringfeder GWE 5117 is available in 5 different sizes.
– Bore diameter d: 4-35 mm (0.157-1.378 inches).
– Outer diameter D: 24.5-64.5 mm (0.966-2.539 inches).
– Total length L: 42-82 mm (1.654-3.228 inches).
– Maximum rotational speed n: 6,000-15,000 1/minute.
– Torque T: 3-160 Nm.
View more product “Elastomer Jaw Couplings GWE 5102“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Ringfeder GWE 5117:
Ringfeder GWE 5117 Servo Motor Shaft Couplings are high quality and widely used in industrial factories. They are used for:
– Encoder drive
– Applications for the F&B industry (Food and beverage)
– Applications for machine tools
– Applications for medical equipment manufacturing
– Packaging manufacturing
– Applications in the chemical industry
– Applications for pumps and air compressors
– Applications for the wood manufacturing industry.

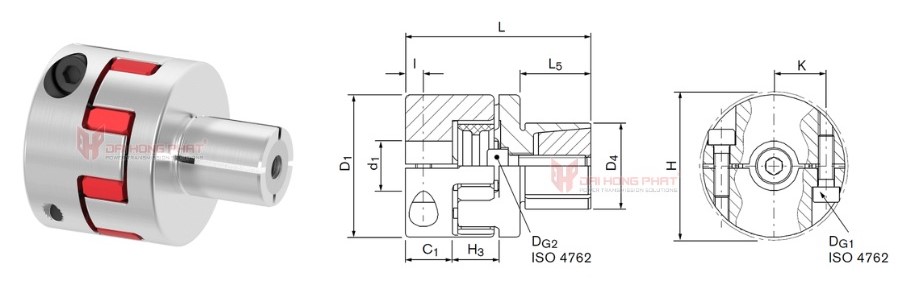

4. Technical of the Elastomer Jaw Coupling Ringfeder GWE 5117:
| Catalogue Ringfeder GWE 5117 |
Installation Ringfeder GWE 5117 |
||||||
 |
|
| Coupling Model |
TKN | nmax | Dimensions [mm] | Gw | |||
| [Nm] | [1/min] | d1 min-max |
d1k min-max |
D1 | L | [kg] | |
| GWE 5117 12 | 9 | 15000 | 4 – 12 | 6 – 12 | 24,5 | 42 | 0,06 |
| GWE 5117 14 | 12,5 | 13000 | 5 – 15 | 6 – 15 | 29,5 | 47,5 | 0,09 |
| GWE 5117 19 | 17 | 10000 | 8 – 20 | 8 – 20 | 39,5 | 65,5 | 0,18 |
| GWE 5117 24 | 60 | 7000 | 10 – 32 | 10 – 32 | 54,5 | 71 | 0,38 |
| GWE 5117 28 | 160 | 6000 | 14 – 35 | 14 – 35 | 64,5 | 82 | 0,67 |
5. Why choose Dai Hong Phat Corp?
100% genuine products imported directly from Ringfeder Germany.
Protect customers from counterfeit goods and always provide full CO/CQ documents.
Goods in stock, fast delivery nationwide 24/7.
Free technical consultation and support for drawings, catalogs.
Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
