Let’s learn about Ringfeder Servo Couplings GWE 5102 with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Servo Couplings GWE 5102 products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam
See more products: Other Ringfeder GWE servo shaft couplings

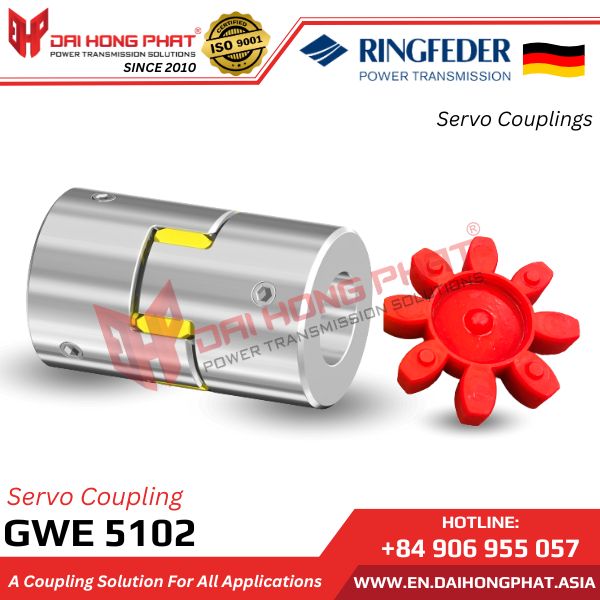

2. Characteristics of the Servo Couplings GWE 5102:
– The Elastomer Jaw Couplings GWE 5102 are manufactured by Ringfeder/Germany.
– Miniature Type with Radial Clamping Screwsfor Lower Transmissible Torques.
– 9 Sizes.
– Bore Diameter d: 2-48 mm.
– Outer Diameter D: 10-80 mm.
– Overall Length L: 15-114 mm.
– Rot. Speed nmax: 5,900-47,500 1/min.
– Torque T: 0.5-190 Nm.
View more product “Elastomer Jaw Couplings GWE Z5106.1“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Elastomer Jaw Couplings GWE 5102:
The Elastomer Jaw Couplings GWE 5102 are commonly used in servo motor systems, packaging machinery, machine tools, printing equipment, and various other industrial applications. They excel in precise torque transmission, flexibility, and vibration damping, ensuring smooth and accurate operation across diverse sectors.

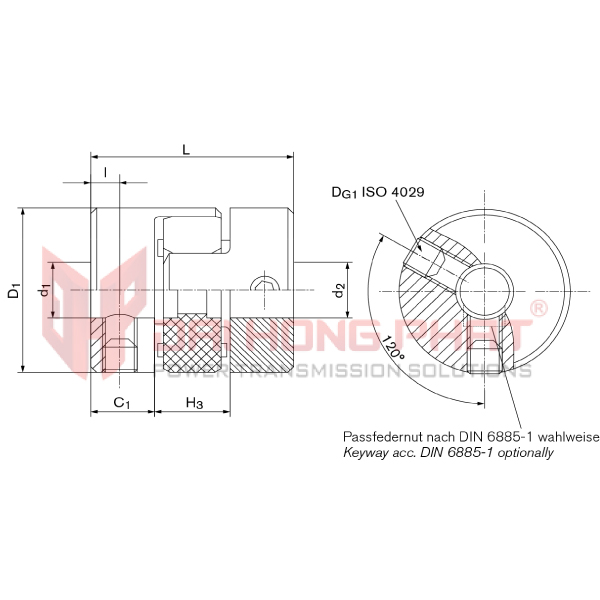

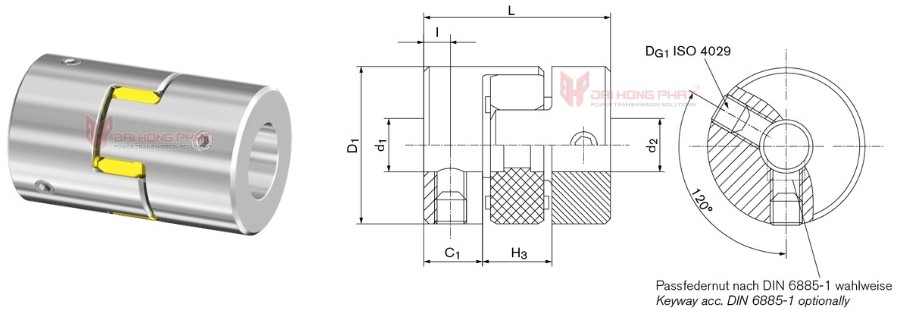

4. Technical of the Elastomer Jaw Couplings GWE 5102:
| Catalogue Ringfeder GWE 5102 |
Installation Ringfeder GWE 5102 |
||||||
 |
|
| Coupling Model |
nmax | TKN | Dimensions [mm] | Gw | ||
| [1/min] | [Nm] | d1, d2 | D1 | L | [kg] | |
| GWE 5102-5 | 47500 | 0.5 | 2 – 5 | 10 | 15 | 0.005 |
| GWE 5102-7 | 34000 | 1.2 | 3 – 8 | 14 | 22 | 0.009 |
| GWE 5102-9 | 24000 | 3 | 3 – 12 | 20 | 30 | 0.017 |
| GWE 5102-12 | 19000 | 5 | 4 – 12 | 25 | 34 | 0.03 |
| GWE 5102-14 | 16000 | 7.5 | 4 – 16 | 30 | 35 | 0.041 |
| GWE 5102-19 | 12000 | 10 | 6 – 24 | 40 | 66 | 0.138 |
| GWE 5102-24 | 8500 | 35 | 8 – 35 | 55 | 78 | 0.282 |
| GWE 5102-28 | 7300 | 95 | — | 65 | 90 | 0.454 |
| GWE 5102-38 | 5900 | 190 | — | 80 | 114 | 0.876 |
5. Why choose Dai Hong Phat Corp?
100% genuine products imported directly from Ringfeder Germany.
Protect customers from counterfeit goods and always provide full CO/CQ documents.
Goods in stock, fast delivery nationwide 24/7.
Free technical consultation and support for drawings, catalogs.
Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
