Let’s learn about Ringfeder Elastomer Rings with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Elastomer Rings TNR products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam
See more: Other Ringfeder Elastomer Rings

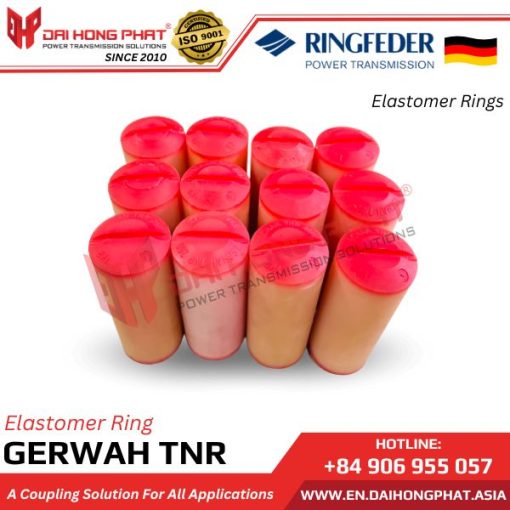

2. Character Ringfeder Elastomer Rings Gerwah TNR:
– Ringfeder Elastomer Rings Gerwah TNR is manufactured by Ringfeder/Germany.
– Available in many types
+ TNR 2424.1 spiral tube, single row, size 260, spacer Pb 70 and flange connection SAE size 16, center bore, diameter 100 H7 with keyway to DIN 6885/1 tolerance P9 and set screw.
+ TNR 2424.2, size 260.2 – 16 Pb 70 /Pb 60/80 H7 / keyway to DIN 6885/1 P9 / set screw.
+ TNR 2425.1: This device is high spiral, double row and has a size of 260. Pb 70 inner and Pb 60 outer gasket and SAE flange connection size 16, center bore diameter 80 H7 with keyway according to DIN 6885/1 tole-rance P9 and set screw.
+ TNR 2425.2, size 260.2 – 11.5 Vk 90 /Vk 80/2517/48.
+ TNR 2428.1, size 260,1 Vk 90/100 H7 / keyway to DIN 6885/1 P9 / set screw / 120 H7 / keyway DIN 6885/1 P9 / set screw.
+ TNR 2428.2, size 260,2 Vk 90 / Vk 80/100 H7 / keyway to DIN 6885/1P9 / set screw / 120 H7 / keyway to DIN 6885/1 P9 / set screw.
See TNR 2428.1 Shaft Coupling specifications here
View product detail “Torsional Highflex Couplings Ringfeder“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Application of Ringfeder Gerwah TNR Elastomer Ring:
TNR elastomer rings are used for Ringfeder TNR couplings. They are used in all areas of power generation, including wind and hydropower plants, emergency power units or mobile generators, as well as in pumps and compressors.
5. Technical drawing of Ringfeder Gerwah TNR Elastomer Ring:
| Catalogue Elastomer Rings Ringfeder TNR |
Installation Elastomer Rings Ringfeder TNR |
||||||
 |
|
| Size | Buffer Inside/Outside | Nominal torque TKN |
Max. torque TKmax |
Permanent oscillating torque TKW |
Max. speed nmax |
| Nm | Nm | Nm | 1/min | ||
| 120.1 160.2 |
Pb 60 Pb 60 / Pb 60 |
160 | 320 | 96 | 6000 5000 |
| 120.1 160.2 |
Pb 70 Pb 70 / Pb 60 |
180 | 360 | 108 | 6000 5000 |
| 120.1 160.2 |
Pb 80 Pb 80 / Pb 70 |
300 | 600 | 180 | 6000 5000 |
| 120.1 160.2 |
VK 80 VK 80 / VK 80 |
300 | 600 | 180 | 6000 5000 |
| 120.1 160.2 |
VK 90 VK 90 / VK 80 |
510 | 1020 | 306 | 6000 5000 |
| 160.1 200.2 |
Pb 60 Pb 60 / Pb 60 |
325 | 650 | 195 | 5000 4000 |
| 160.1 200.2 |
Pb 70 Pb 70 / Pb 60 |
360 | 720 | 216 | 5000 4000 |
| 160.1 200.2 |
Pb 80 Pb 80 / Pb 70 |
600 | 1200 | 360 | 5000 4000 |
| 160.1 200.2 |
VK 80 VK 80 / VK 80 |
600 | 1200 | 360 | 5000 4000 |
| 160.1 200.2 |
VK 90 VK 90 / VK 90 |
1020 | 2040 | 612 | 5000 4000 |
| 200.1 260.2 |
Pb 60 Pb 60 / Pb 60 |
675 | 1350 | 405 | 4000 3600 |
| 200.1 260.2 |
Pb 70 Pb 70 / Pb 60 |
750 | 1500 | 450 | 4000 3600 |
| 200.1 260.2 |
Pb 80 Pb 80 / Pb 70 |
1250 | 2500 | 750 | 4000 3600 |
| 200.1 260.2 |
VK 80 VK 80 / VK 80 |
1250 | 2500 | 750 | 4000 3600 |
| 200.1 260.2 |
VK 90 VK 90 / VK 90 |
2125 | 4250 | 1275 | 4000 3600 |
| …. | …. | …. | …. | …. | …. |
| 640.1 | Pb 60 | 21600 | 43200 | 12960 | 1500 |
| 640.1 | Pb 70 | 24000 | 48000 | 14400 | 1500 |
| 640.1 | Pb 80 | 40000 | 80000 | 24000 | 1500 |
| 640.1 | VK 80 | 40000 | 80000 | 24000 | 1500 |
| 640.1 | VK 90 | 68000 | 136000 | 40800 | 1500 |
5. Why choose Dai Hong Phat Corp?
100% genuine products imported directly from Ringfeder Germany.
Protect customers from counterfeit goods and always provide full CO/CQ documents.
Goods in stock, fast delivery nationwide 24/7.
Free technical consultation and support for drawings, catalogs.
Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
