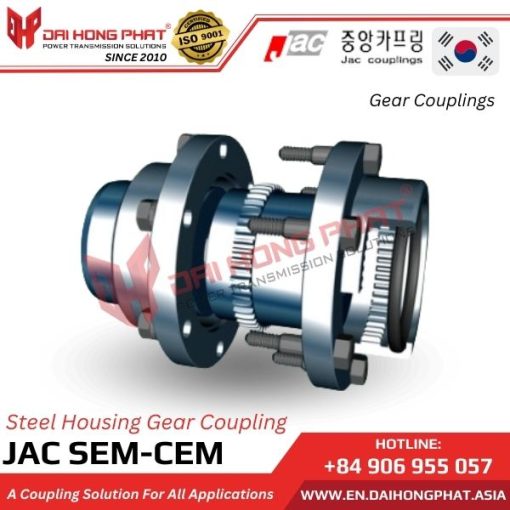

JAC SEM/CEM GEAR COUPLING

The Gear Couplings Type SEM/CEM, like the SSM-CCM, are designed to deliver high performance using state-of-the-art technology. They boast high durability and excellent resistance to wear and tear, ensuring reliable operation even in demanding conditions.

Description

5/5 - (5 votes)

1. Dai Hong Phat Corp. is the exclusive distributor specializing in providing all JAC Gear Coupling products throughout Vietnam:

– Established in 1977, JAC specializes in manufacturing top-quality couplings in South Korea and has become a cornerstone of the machinery industry. With over 20 years of focus on couplings, JAC strives to be the foundation for the development of its machinery industry.
– Dai Hong Phat Corp. collaborates with JAC, a South Korean brand specialized in providing innovative shaft couplings, offering superior performance.
– Dai Hong Phat is the authorized importer and distributor of all 100% genuine JAC brand coupling products in Vietnam.
– With over 10 years of credibility, Dai Hong Phat ensures customers acquire genuine Gear Couplings Type SEM/CEM with high quality and the best prices in the market.

2. Characteristics of the JAC Gear Couplings Type SEM/CEM:

– The steel gear couplings Type SEM/CEM are manufactured by JAC/Korea.
– These gear couplings feature a compact and lightweight design.
– The hub teeth are designed in a curved shape for enhanced performance.
– Both sliding bars have grooves, facilitating easy installation and preventing grease leakage.
– Made of S45C steel, ensuring durability and reliability.

View more product “Gear Couplings Type GDBW/GSBW“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Technical of the Gear Couplings Type SEM/CEM:

With its heavy-duty transmission capability, the Gear Couplings type SEM/CEM are much smaller and lighter than those offered by other manufacturers. It generates minimal noise or vibration, even at high speeds. The curved shape of the outer hub teeth ensures reliable operation even in the presence of shaft misalignment. Additionally, the grooves on both sliding bars facilitate easy installation and prevent grease leakage.

View more product “Gear Couplings Type GDS“

4. Technical of the JAC SEM/CEM Gear Coupling:

There’s no difference in the angle of rotation between two shafts due to coupling misalignment. Therefore, it can be used with intermediate shafts connected or operating at high speeds and heavy-duty applications.
The steel gear couplings Type SEM/CEM boast high durability and excellent resistance to wear and tear. If there’s any shaft misalignment, the gear coupling can adjust and absorb that misalignment, ensuring smooth transmission and protecting the machinery from overloading.

Catalog of the JAC SEM/CEM Gear Coupling:

Catalogue JAC SEM/CEM Gear Couplings				Installation JAC SEM/CEM Gear Couplings

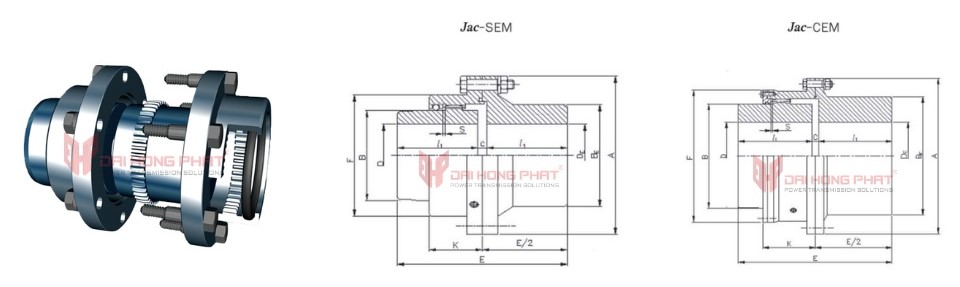

*Technical drawing of the Gear Couplings Type SEM CEM*

Model	Torque rating (Nm)	Max. speed (rpm)	Dimensions(mm)										Weight (kg)
Model	Torque rating (Nm)	Max. speed (rpm)	Bore D (min/max)	Nore DE (min/max)	E	ℓ1	C	B	F	K	BE	S	Weight (kg)
SEM 112	80.3	4000	17 / 40	17 / 50	108	50	8	58	79	40	70	2	4.6
SEM 125	142	4000	22 / 50	22 / 56	134	63	8	70	92	43	80	2.5	6.7
SEM 140	205	4000	22 / 56	22 / 63	150	71	8	80	107	47	90	2.5	9.3
SEM 160	314	4000	22 / 65	22 / 75	170	80	10	95	120	52	105	3	14
SEM 180	482	4000	32 / 75	32 / 80	190	90	10	105	134	56	115	3	19
SEM 200	689	3810	32 / 85	32 / 95	210	100	10	120	149	61	135	3	26
SEM 224	1000	3410	42 / 100	42 / 105	236	112	12	145	174	65	150	4	38
SEM 250	1470	3050	42 / 115	42 / 125	262	125	12	165	200	74	180	4	56
SEM 280	2340	2720	42 / 135	42 / 150	294	140	14	190	224	82	210	4.5	83
SEM 315	3680	2420	100 / 160	100 / 180	356	170	16	225	260	98	250	5.5	135
SEM 355	5550	2150	125 / 180	125 / 200	396	190	16	250	288	108	275	5.5	184
SEM 400	7790	1900	140 / 200	140 / 236	418	200	18	285	329	114	325	6.5	261
CEM 450	11000	1690	140 / 205	140 / 225	418	200	18	290	372	151	320	5	304
CEM 500	16600	1520	170 / 236	170 / 270	494	236	22	335	424	168	380	6	453
CEM 560	25500	1360	190 / 275	190 / 305	552	265	22	385	472	187	430	6.5	664
CEM 630	42000	1210	224 / 325	224 / 355	658	315	28	455	544	213	500	8	1020
CEM 710	61200	1070	250 / 360	250 / 400	738	355	28	510	622	242	565	8.5	1460
CEM 800	87500	950	280 / 405	280 / 450	832	400	32	570	690	267	635	9.5	2090
CEM 900	125000	840	315 / 475	315 / 510	932	450	32	670	762	295	715	10.5	3020
CEM 1000	171000	760	355 / 510	355 / 570	1040	500	40	720	858	322	800	12	4130
CEM 1120	240000	682	400 / 600	400 / 640	1160	560	40	840	990	360	900	13	5970
CEM 1250	331000	610	500 / 710	500 / 800	1460	710	40	960	1126	399	1060	14	9820
(Note) Coupling weight and GD2,without Bore machining
