1. Dai Hong Phat Corp. is the exclusive distributor specializing in providing all JAC Gear Coupling products throughout Vietnam:
– Established in 1977, JAC specializes in manufacturing top-quality couplings in South Korea and has become a cornerstone of the machinery industry. With over 20 years of focus on couplings, JAC strives to be the foundation for the development of its machinery industry.
– Dai Hong Phat Corp. collaborates with JAC, a South Korean brand specialized in providing innovative shaft couplings, offering superior performance.
– Dai Hong Phat is the authorized importer and distributor of all 100% genuine JAC brand coupling products in Vietnam.
– With over 10 years of credibility, Dai Hong Phat ensures customers acquire genuine Gear Couplings Type GDS with high quality and the best prices in the market.
2. Characteristics of the Gear Couplings Type GDBW/GSBW:

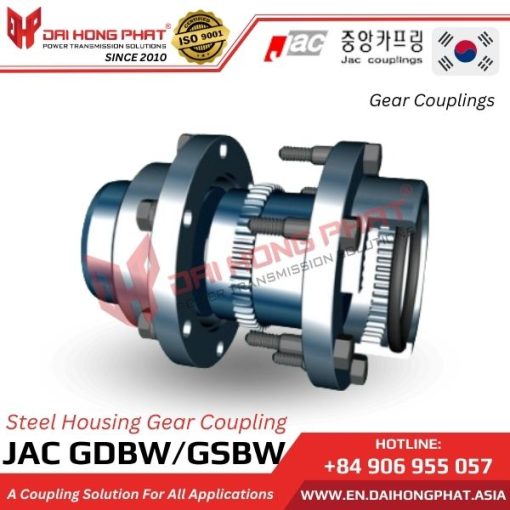

– The steel gear couplings Type GDBW/GSBW are manufactured by JAC/Korea.
– They come in various sizes and dimensions to suit different applications.
– The hub teeth are crafted in a curved shape.
– Both sliding bars are grooved for enhanced functionality.
– These gear couplings are made of S45C steel for durability and reliability.
View more product “Gear Couplings Type GDS“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Functions of the JAC GDBW/GSBW Gear Coupling:
Designed to deliver high performance using state-of-the-art technology, JAC gear couplings Type GDBW/GSBW are smaller and lighter than any other coupling while maintaining the capability to handle heavy loads. They produce minimal noise or vibration, even at high speeds.
4. Technical of the JAC GDBW/GSBW Gear Coupling:
The steel gear couplings type GDBW/GSBW are capable of handling heavy loads. Their design allows for torque transmission without reverse jerking reaction. They typically achieve parallel misalignment up to 0.01 inches and angular misalignment of approximately 1 degree.
Catalog of the GDBW/GSBW Gear Couplings:
| Catalogue Khớp nối răng vỏ thép JAC GDBW/GSBW |
Hướng dẫn lắp đặt Khớp nối răng vỏ thép JAC GDBW/GSBW |
||||||
 |
|
| Size | Torque rating (kgf.m) |
Dimensions(mm) | |||||||||||
| Bore D (min /max) |
Bore DE (min /max) |
A | E | ℓ1 | ℓ2 | B | F | C (GDBW) |
C (GSBW) |
M | N | ||
| 10 | 85.9 | 13 / 48 | 13 / 60 | 116 | 89 | 43 | 40 | 69 | 84 | 13 | 14 | ||
| 15 | 193.4 | 19 / 60 | 19 / 75 | 152 | 101 | 49 | 46 | 86 | 105 | 16 | 17 | 200 | 100 |
| 20 | 358.1 | 25 / 73 | 25 / 92 | 178 | 127 | 62 | 58 | 105 | 126 | 16 | 17 | ||
| 25 | 644.6 | 32 / 92 | 32 / 111 | 213 | 159 | 77 | 74 | 131 | 155 | 19 | 19 | 250 | 125 |
| 30 | 1074.3 | 38 / 105 | 38 / 130 | 240 | 187 | 91 | 88 | 152 | 180 | 19 | 19 | 315 | 160 |
| 35 | 1647.3 | 51 / 124 | 51 / 149 | 279 | 218 | 106 | 102 | 178 | 211 | 25 | 25 | 355 | 180 |
| 40 | 2506.7 | 64 / 146 | 64 / 171 | 318 | 248 | 121 | 115 | 210 | 245 | 25 | 26 | 400 | 200 |
| 45 | 3437.8 | 76 / 165 | 76 / 194 | 346 | 278 | 135 | 131 | 235 | 274 | 27 | 27 | 450 | 224 |
| 50 | 4653.3 | 89 / 178 | 89 / 222 | 389 | 314 | 153 | 147 | 254 | 306 | 33 | 34 | 500 | 250 |
| 55 | 6087.7 | 102 / 197 | 102 / 248 | 425 | 344 | 168 | 173 | 279 | 334 | 33 | 34 | ||
| (Note)Due to customer’s requirements, it can be modified to dimension of ‘M’ & ‘N’. | |||||||||||||
5. Choosing Dai Hong Phat Corp. as your supplier for Steel-Gear Coupling offers several benefits:
– You can purchase genuine JAC GDBW/GSBW Gear Couplings directly imported from JAC Korea.
– Dai Hong Phat protects you against the risk of counterfeit JAC products.
– We provide complete CO/CQ documents for your JAC Coupling products.
– We maintain a ready stock Gear Couplings Type GDBW/GSBW in our warehouse, ensuring prompt delivery.
– Technical drawings of the coupling products are available upon request.
– Our team of highly skilled technical experts is always available to assist you.
– We offer free consultation on optimal solutions for your plant with genuine products from the JAC brand.
– You will receive the official JAC Steel Gear Couplings catalogue from Dai Hong Phat.
– We provide free customization of technical specifications and dimensions of JAC couplings according to your requirements.
– We offer nationwide delivery 24/7, minimizing downtime for your machinery.
– Our professional machining workshop can tailor solutions to meet your specific needs.
Contact Dai Hong Phat now for consultation!
