Let’s learn about Flender Elastomer Rings Rupex with Dai Hong Phat Corp, through the following article!
1. About Dai Hong Phat – Flender Germany
– Dai Hong Phat Corp is the official authorized representative of Flender Germany in Vietnam. We provide genuine transmission shaft coupling solutions, meeting international standards, helping to optimize the performance and durability of machinery systems.
– Flender was founded in 1899, pioneering the manufacture of wooden pulleys, developing couplings, speed converters, laying the foundation for the transmission industry. Through development, Flender expanded to provide gearboxes, couplings, industrial transmission systems. Merged with Siemens in 2005. Currently, Flender stands out with maintenance services, sustainable transmission solutions, serving the world’s key industries.
– Flender Elastomer Rings Rupex products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
2. Characteristics of Elastomer Rings Rupex:

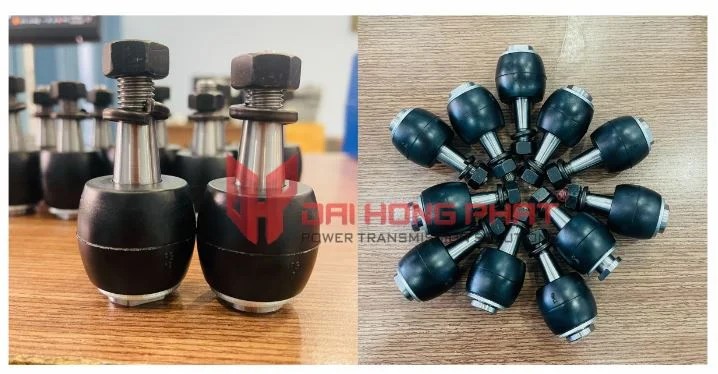

– Rupex Rubber Elements are manufactured by Flender/Germany.
– Available in 26 sizes.
– Equipped with impact-resistant bolts for torque ranges from medium to high.
– Torque range from 200 Nm to 1,690,000 Nm.
– Operating temperature: from -50°C to +100°C
– Torque transmission is carried out through elastic rubber buffer, giving the coupling characteristic rubber elasticity.
View more product “Rupex RWS pin and bush couplings“
See more articles: How to distinguish genuine rubber shock absorbers for joints
| MỌI THẮC MẮC HOẶC YÊU CẦU BÁO GIÁ, QUÝ KHÁCH VUI LÒNG LIÊN HỆ: PHÒNG KINH DOANH HOTLINE: 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Application of Rupex Flender Coupling Rubber
Flender Coupling Rubber Rupex Application:
- Transmission connection with gearbox: Usually used to connect gearbox gears to production machinery.
- Direct drive system: Effective application when no gearbox is used, especially in harsh conditions and heavy loads.
- Heavy industry: Ideal for mining, steel, cement, oil and gas, electricity… where high torque and high reliability are required.
- Special application: Can be integrated in brake systems, shaft couplings or motor-brake couplings, ensuring safe and durable operation.

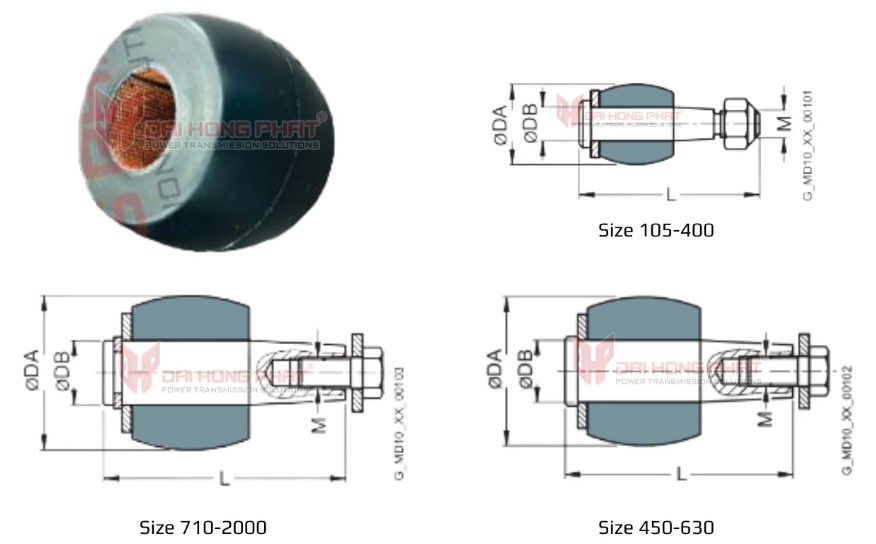

4. Technical of Rupex rubber elements:
| Catalogue Rupex rubber elements |
Installaion Rupex rubber elements |
||||||
 |
|
| Kích thước | Số lượng (Cái) |
L (mm) |
D (mm) |
d (mm) |
Order code |
| Size 105 | 8 | 19 | 20 | 8 | 2LC0130-1WA00-0AA0 |
| Size 125 | 8 | 22 | 24 | 10 | 2LC0130-2WA00-0AA0 |
| Size 144 | 10 | 22 | 24 | 10 | 2LC0130-3WA00-0AA0 |
| Size 162 | 9 | 27 | 30 | 12 | 2LC0130-4WA00-0AA0 |
| Size 178 | 10 | 27 | 30 | 12 | 2LC0130-5WA00-0AA0 |
| Size 198 | 12 | 27 | 30 | 12 | 2LC0130-6WA00-0AA0 |
| Size 228 | 11 | 33 | 40 | 16 | 2LC0130-7WA00-0AA0 |
| Size 252 | 12 | 33 | 40 | 16 | 2LC0130-8WA00-0AA0 |
| Size 285 | 11 | 40 | 48 | 20 | 2LC0131-0WA00-0AA0 |
| Size 320 | 12 | 40 | 48 | 20 | 2LC0131-1WA00-0AA0 |
| Size 360 | 10 | 50 | 64 | 26 | 2LC0131-2WA00-0AA0 |
| Size 400 | 14 | 50 | 64 | 26 | 2LC0131-3WA00-0AA0 |
| Size 450 | 12 | 63 | 78 | 32 | 2LC0131-4WA00-0AA0 |
| Size 500 | 14 | 63 | 78 | 32 | 2LC0131-5WA00-0AA0 |
| Size 560 | 12 | 80 | 101 | 42 | 2LC0131-6WA00-0AA0 |
| Size 630 | 14 | 80 | 101 | 42 | 2LC0131-7WA00-0AA0 |
| Size 710 | 14 | 95 | 120 | 50 | 2LC0131-8WA00-0AA0 |
| Size 800 | 16 | 96 | 120 | 50 | 2LC0132-0WA00-0AA0 |
| Size 900 | 16 | 108 | 136 | 55 | 2LC0132-1WA00-0AA0 |
| Size 1000 | 18 | 108 | 136 | 55 | 2LC0132-2WA00-0AA0 |
| Size 1120 | 18 | 122 | 155 | 60 | 2LC0132-3WA00-0AA0 |
| Size 1250 | 20 | 122 | 155 | 60 | 2LC0132-4WA00-0AA0 |
| Size 1400 | 20 | 144 | 175 | 70 | 2LC0132-5WA00-0AA0 |
| Size 1600 | 24 | 144 | 175 | 70 | 2LC0132-6WA00-0AA0 |
| Size 1800 | 22 | 172 | 200 | 80 | 2LC0132-7WA00-0AA0 |
| Size 2000 | 26 | 172 | 200 | 80 | 2LC0132-8WA00-0AA0 |
5. Why choose Dai Hong Phat Corp?
100% genuine products imported directly from Flender Germany.
Protect customers from counterfeit goods and always provide full CO/CQ documents.
Goods in stock, fast delivery nationwide 24/7.
Free technical consultation and support for drawings, catalogs.
Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
