1. Dai Hong Phat Corp. is the exclusive representative specializing in supplying all Flender tire couplings throughout Vietnam:
– Established since 1889, Flender has grown significantly and distributes to 33 countries worldwide. Flender has led a revolution in the power transmission industry with its high-quality products and services.
– Dai Hong Phat collaborates with Flender, a renowned German manufacturer of power transmission equipment in Europe and worldwide.
– Đại Hồng Phát Company is the importer and distributor of all genuine Flender Elpex-B couplings from the Flender brand in Vietnam.
– With over 10 years of credibility, Dai Hong Phat ensures the supply of 100% genuine Flender Elpex-B Rubber Tire Couplings with high quality and the most competitive prices on the market.
2. Characteristics of the Flender Elpex-B Rubber Tire Couplings:
– Manufacturer: Flender/Germany
– Available in 15 sizes
– Rated torque range from TKN = 24 Nm to 14,500 Nm
– Temperature range: from -50°C to +50°C for natural rubber material, from -15°C to +70°C for Chloroprene rubber
– Extremely flexible coupling, no reverse reaction
– Compensates for very large shaft misalignments
– Not dependent on rotation direction (suitable for bidirectional operation)
– Rubber tire can be easily replaced without moving the connected machines
– Can be easily mounted onto shafts with taper bushings
– Flender Elpex-B hubs are made of high-quality cast iron or steel. Torque is transmitted by a reinforced rubber tire with a layer of cords.
– Flender Elpex-B tire couplings are highly flexible, transmitting torque without backlash along the circumference in machines with uneven torque characteristics. They are wear-resistant and require no maintenance.
View more product “Fenaflex Tyre Couplings“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Flender Elpex-B Rubber Tire Couplings:
The Flender Elpex-B rubber tire couplings are used in various industries including:
– Mining and cement: crushers
– Steel production: cutting machines, straightening machines, reversible rolling mills, pilger mills
– Power generation: air-cooled condensers
– Chemical and pharmaceutical: dryers, mixers, stirrers, reaction furnaces
– Paper and pulp: wastewater treatment plants
– Food and beverage: lauter tuns, reaction furnaces, mixers
– Sugar: diffusers, sugar mills.

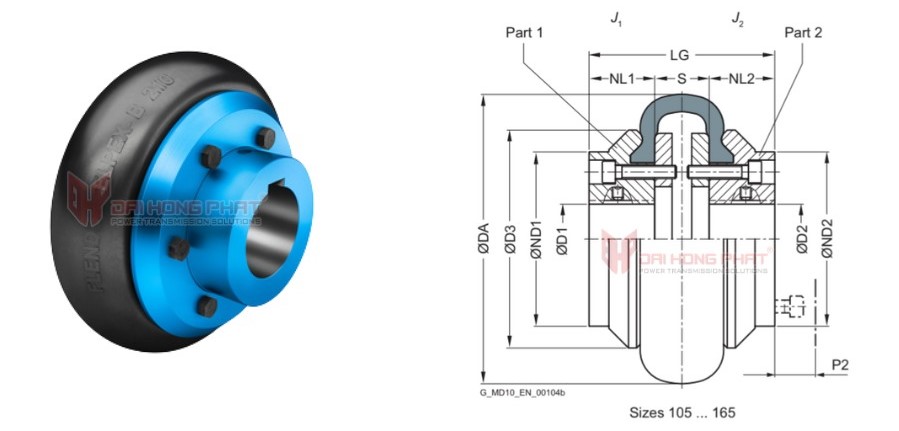

4. Technical of the Flender Elpex-B Rubber Tire Couplings:
| Catalogue Flender Elpex-B |
Installation Flender Elpex-B |
||||||
 |
|
| Power ratings | |||||||||||||||
| Model | Rated torque TKN Nm |
Maximum torque TKmax Nm |
Overload torque TKOL Nm |
Fatigue torque TKW Nm |
Maximum speed nKmax rpm |
Dynamic torsional stiffness CTdyn Nm/rad |
Permitted shaft misalignment at n = 1500 rpm 1) |
||||||||
| Axial ΔKa mm |
Radial ΔKr mm |
Angle ΔKw Degree |
|||||||||||||
| 105 | 24 | 48 | 72 | 7 | 4500 | 285 | 1.3 | 1.1 | 4 | ||||||
| 135 | 66 | 132 | 200 | 20 | 4500 | 745 | 1.7 | 1.3 | 4 | ||||||
| 165 | 125 | 250 | 375 | 38 | 4000 | 1500 | 2 | 1.6 | 4 | ||||||
| 190 | 250 | 500 | 750 | 75 | 3600 | 2350 | 2.3 | 1.9 | 4 | ||||||
| 210 | 380 | 760 | 1140 | 114 | 3100 | 3600 | 2.6 | 2.1 | 4 | ||||||
| 235 | 500 | 1000 | 1500 | 150 | 3000 | 5200 | 3 | 2.4 | 4 | ||||||
| 255 | 680 | 1360 | 2040 | 204 | 2600 | 7200 | 3.3 | 2.6 | 4 | ||||||
| 280 | 880 | 1760 | 2640 | 264 | 2300 | 10000 | 3.7 | 2.9 | 4 | ||||||
| 315 | 1350 | 2700 | 4050 | 405 | 2050 | 17000 | 4 | 3.2 | 4 | ||||||
| 360 | 2350 | 4700 | 7050 | 705 | 1800 | 28000 | 4.6 | 3.7 | 4 | ||||||
| 400 | 3800 | 7600 | 11400 | 1140 | 1600 | 44500 | 5.3 | 4.2 | 4 | ||||||
| 470 | 6300 | 12600 | 18900 | 1890 | 1500 | 78500 | 6 | 4.8 | 4 | ||||||
| 510 | 9300 | 18600 | 27900 | 2790 | 1300 | 110000 | 6.6 | 5.3 | 4 | ||||||
| 560 | 11500 | 23000 | 34500 | 3450 | 1100 | 160000 | 7.3 | 5.8 | 4 | ||||||
| 630 | 14500 | 29000 | 43500 | 4350 | 1000 | 200000 | 8.2 | 6.6 | 4 | ||||||
5. Why Choose Dai Hong Phat Corp. as Your Supplier for Flender Rubber Couplings?
– You will be able to purchase 100% genuine Flender Elpex-B couplings directly imported from Flender Germany by Dai Hong Phat.
– You can trust Dai Hong Phat to protect you from risks by guarding against counterfeit Flender Elpex-B Rubber Tire Couplings.
– We provide full CO/CQ documentation for the tire couplings.
– Flender tire couplings are always available in Dai Hong Phat’s warehouse, ensuring prompt delivery to our customers.
– We will provide technical drawings of the Flender Elpex-B products upon request.
– Dai Hong Phat always provides dedicated support and technical advice to our customers regarding tire couplings, thanks to our team of highly skilled technical specialists.
– We offer free consultation on optimal solutions for our customers’ factories regarding genuine Flender Elpex-B products from the Flender brand.
– You will receive the genuine Flender tire coupling catalogue from Dai Hong Phat.
– We offer free customization of technical specifications and sizes of the Flender Elpex-B products according to our customers’ requirements.
– Dai Hong Phat provides nationwide 24/7 delivery services, ensuring minimal downtime for our customers’ machinery during operation.
– Our professional workshop is available for custom machining and adjustment according to our customers’ specific requests.
