1. Dai Hong Phat Corp. is the exclusive representative specialized in supplying all PTI Gear Coupling products throughout Vietnam:
PTI Coupling – Korea, with over 30 years of establishment, has significantly contributed to the development of the AC motor industry as a member of the global community. PTI has researched and developed couplings beyond the concept of “couplings for mere power transmission” to create high-quality, durable couplings, enhancing the effective productivity protection of related machinery. In this era of rapid technological advancement, PTI is striving to lead the trend by providing superior-quality products through the collective efforts of all PT Couplings staff.
Dai Hong Phat Company specializes in supplying power transmission equipment from major brands such as Ringfeder, JAC, Westcar, KTR, etc. In addition, Dai Hong Phat also collaborates with PTI Coupling as the official distributor, providing 100% genuine Gear Couplings Type DHP-PSS/PCC throughout Vietnam as the authorized PTI Distributor in Vietnam.

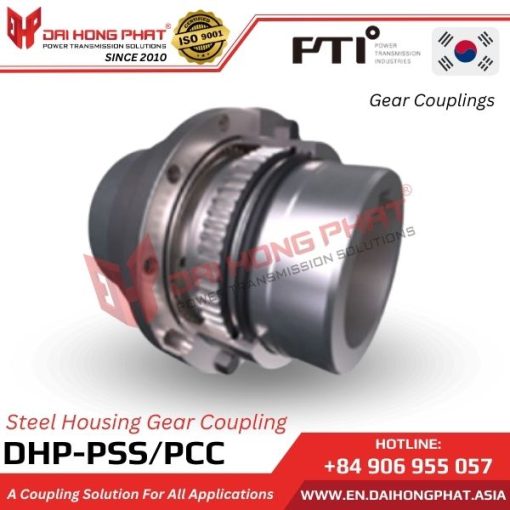

2. Characteristics of the PTI DHP-PSS/PCC Gear Couplings:
– The DHP-PSS/PCC gear couplings are manufactured by PTI Coupling/Korea.
– It has a significantly high torque.
– The internal gear and center gear are interconnected.
– Made entirely of metal.
– Torque ranges from 100 RPM to 8000 RPM.
View more product “Gear Couplings Type PSE/PCE“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Functions of the DHP-PSS/PCC Gear Couplings:
DHP-PSS/PCC Gear couplings are used to connect shafts together and are employed in specialized applications with requirements such as high load-bearing capacity, high operating speeds, low rotational speeds but requiring strong torque. These couplings are utilized in applications where there is simultaneous rotary and sliding motion, with large distances between the shafts.
4. Technical of the Gear Couplings Type DHP-PSS/PCC:
The DHP-PSS/PCC Gear Couplings exhibit significantly high torque despite its compact size. The internal intermediate gear and the center gear are interlocked to transmit power. This all-metal flexible gear coupling minimizes energy wastage. These gear couplings can transmit moderate, high, and very high torques while operating from under 100 RPM to 8000 RPM without any issues if they are properly lubricated.

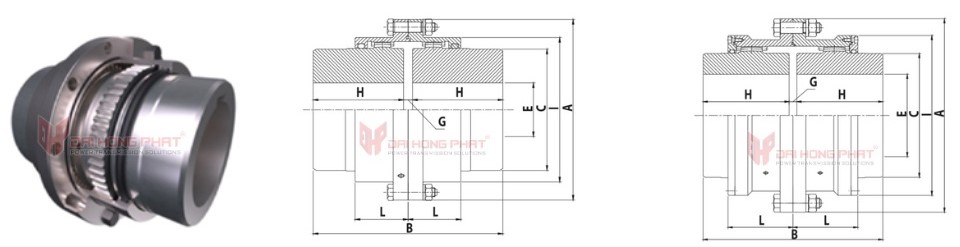

Catalog of the PTI Coupling DHP-PSS/PCC:
| Catalogue PTI Coupling DHP-PSS/PCC |

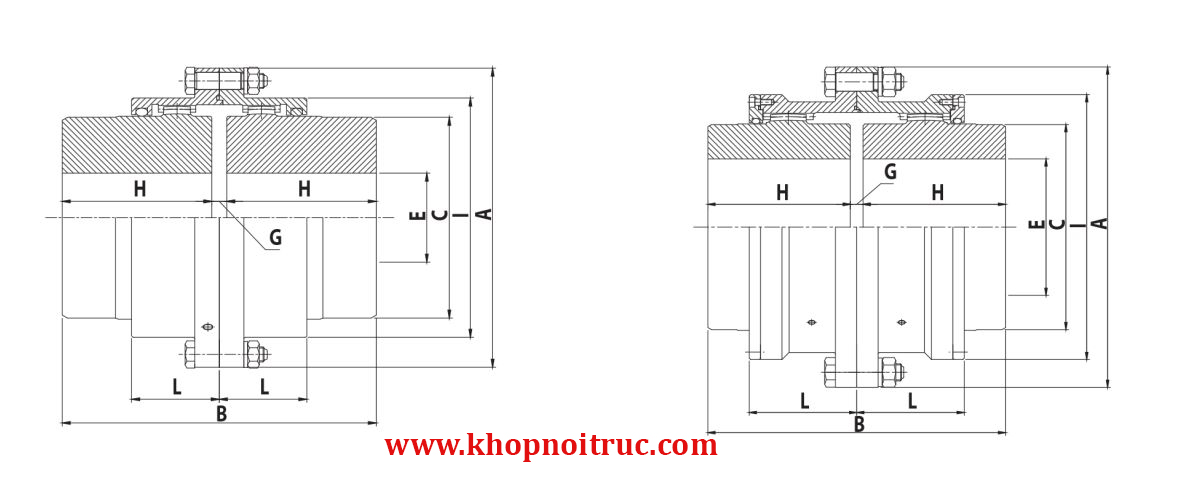

Installation PTI Coupling DHP-PSS/PCC |
||||||
 |
|
| SIZE | MAX SPEED | BASIC TORGUE | BORE DIA(mm) | Dimensions(mm) | WEIGHT | LUBE WT | PSS-H | |||||||
| (RPM) | (Nm) | MAX | MIN | A | B | C | H | I | L | G | (kg) | (kg) | (Nm) | |
| DHP-PSS100 | 3,600 | 254 | 25 | 16 | 100 | 88 | 46 | 40 | 67 | 34 | 8 | 3 | 0.03 | 802 |
| DHP-PSS112 | 3,600 | 617 | 40 | 16 | 112 | 108 | 58 | 50 | 79 | 40 | 8 | 5 | 0.04 | 1,420 |
| DHP-PSS125 | 3,600 | 1,072 | 50 | 31 | 125 | 134 | 70 | 63 | 92 | 43 | 8 | 7 | 0.05 | 2,410 |
| DHP-PSS140 | 3,600 | 1,486 | 56 | 31 | 140 | 150 | 80 | 71 | 107 | 47 | 8 | 9 | 0.07 | 3,540 |
| DHP-PSS160 | 3,600 | 2,250 | 63 | 31 | 160 | 170 | 95 | 80 | 120 | 52 | 10 | 14 | 0.09 | 5,090 |
| DHP-PSS180 | 3,600 | 3,372 | 71 | 45 | 180 | 190 | 105 | 90 | 134 | 56 | 10 | 19 | 0.12 | 7,730 |
| DHP-PSS200 | 3,600 | 4,913 | 80 | 45 | 200 | 210 | 120 | 100 | 149 | 61 | 10 | 26 | 0.15 | 12,700 |
| DHP-PSS224 | 3,080 | 6,987 | 90 | 51 | 224 | 236 | 145 | 112 | 174 | 65 | 12 | 38 | 0.25 | 17,800 |
| DHP-PSS250 | 2,650 | 9,665 | 100 | 51 | 250 | 262 | 165 | 125 | 200 | 74 | 12 | 56 | 0.35 | 24,200 |
| DHP-PSS280 | 2,340 | 16,555 | 125 | 51 | 280 | 294 | 190 | 140 | 224 | 82 | 14 | 83 | 0.48 | 32,300 |
| DHP-PSS315 | 1,980 | 31,653 | 160 | 112 | 315 | 356 | 225 | 170 | 260 | 98 | 16 | 135 | 0.77 | 49,700 |
| DHP-PSS355 | 1,800 | 39,706 | 180 | 125 | 355 | 396 | 250 | 190 | 288 | 108 | 16 | 184 | 0.94 | 65,800 |
| DHP-PSS400 | 1,570 | 54,737 | 200 | 140 | 400 | 418 | 285 | 200 | 329 | 114 | 18 | 261 | 1.36 | 92,400 |
| DHP-PCC450 | 1,540 | 74,705 | 200 | 140 | 450 | 418 | 290 | 200 | 372 | 151 | 18 | 304 | 1.79 | 174,000 |
| DHP-PCC500 | 1,320 | 117,186 | 236 | 170 | 500 | 494 | 335 | 236 | 425 | 168 | 22 | 453 | 2.64 | 261,000 |
| DHP-PCC560 | 1,170 | 166,784 | 265 | 190 | 560 | 552 | 385 | 265 | 475 | 187 | 22 | 664 | 3.23 | 408,000 |
| DHP-PCC630 | 990 | 260,501 | 280 | 200 | 630 | 658 | 455 | 315 | 548 | 213 | 28 | 1,020 | 4.93 | 581,000 |
| DHP-PCC710 | 870 | 376,696 | 355 | 250 | 710 | 738 | 510 | 355 | 622 | 242 | 28 | 1,460 | 6.63 | 789,000 |
| DHP-PCC800 | 780 | 537,311 | 400 | 280 | 800 | 832 | 570 | 400 | 690 | 267 | 32 | 2,090 | 9.35 | 1,110,000 |
| DHP-PCC900 | 840 | 771,115 | 475 | 315 | 900 | 932 | 670 | 450 | 792 | 295 | 32 | 3,030 | 12.63 | 1,510,000 |
| DHP-PCC1000 | 760 | 1,189,219 | 510 | 355 | 1,000 | 1,040 | 720 | 500 | 858 | 322 | 40 | 4,120 | 13.75 | 1,970,000 |
| DHP-PCC1120 | 682 | 1,598,179 | 600 | 400 | 1,120 | 1,160 | 840 | 560 | 990 | 360 | 40 | 5,920 | 15.45 | 2,450,000 |
| DHP-PCC1250 | 610 | 2,120,000 | 710 | 500 | 1,250 | 1,460 | 960 | 710 | 1,126 | 399 | 40 | 9,410 | 18.25 | 3,250,000 |
5. Why choose Dai Hong Phat Corp. as your supplier for Gear Couplings PTI?
– Our customers will have the opportunity to purchase genuine Gear Coupling imported directly from PTI Coupling Korea.
– Dai Hong Phat will safeguard you against risks by providing genuine PTI Gear Couplings products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for products will be provided to our customers.
– With a readily available stock of All-Steel Gear Couplings, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine DHP-PSS/PCC Gear Couplings from the PTI Coupling brand.
– Our customers will receive the official PTI Coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for DHP-PSS/PCC products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.
