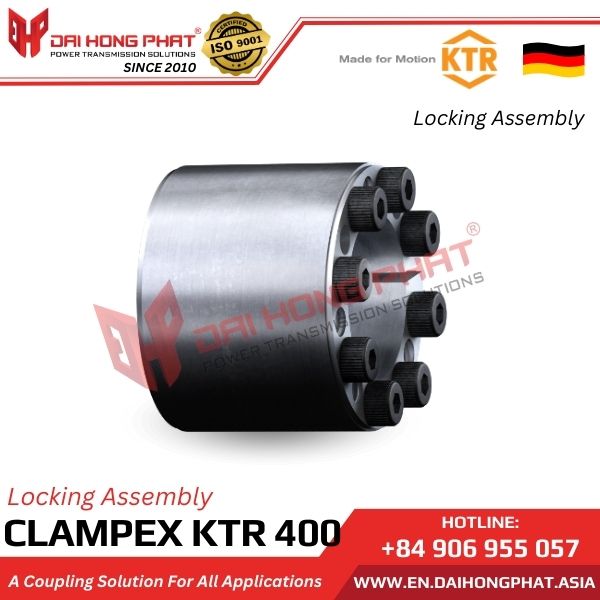

KTR CLAMPEX 400 LOCKING ASSEMBLY

The Clampex KTR 400 Internal Clamping Set, being the largest in size among other shaft locking devices, offers the highest capacity for transmitting forces. It allows for connection without clearance and friction between cylindrical shafts without keyways and center holes (shaft-to-shaft connection).

Category: KTR Locking Assemblies Tags: KTR Germany couplings, KTR Distributors, KTR Distributor in Vietnam, Clampex internal clamping sets, Clampex KTR 400, Clampex KTR, Clampex KTR 400 Internal Clamping Set, KTR Internal Clamping Set

Description

5/5 - (11 votes)

1. What makes Dai Hong Phat Corp. the ideal choice for your Internal Clamping Set KTR supplier?

– You will be able to purchase 100% genuine Clampex KTR 400 Internal Clamping Set KTR directly imported by Dai Hong Phat from the manufacturer.
– You can trust Dai Hong Phat to protect you from risks and counterfeit products of KTR.
– Dai Hong Phat provides complete CO/CQ documents for Clampex KTR 400 Internal Clamping Set.
– KTR products are always available in Dai Hong Phat’s warehouse, ensuring fast delivery to customers.
– Dai Hong Phat will provide technical drawings of the KTR products you purchase upon request.
– Dai Hong Phat offers dedicated support and consultation to customers regarding bolted flexible couplings, with a team of highly skilled technical specialists.
– Dai Hong Phat provides free consultation on optimal solutions for your plant regarding genuine KTR Products.
– Dai Hong Phat provides customers with genuine Clampex KTR 400 catalogues.
– Dai Hong Phat offers free technical parameter conversion and customization of Clampex KTR 400 according to customer requirements.
– Dai Hong Phat provides nationwide 24/7 delivery services, minimizing downtime for your machinery.
– Dai Hong Phat has a professional workshop for custom machining according to customers’ specific requirements.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Clampex KTR 400 products in Vietnam:

– Dai Hong Phat Corp. is the importer and distributor of 100% genuine Clampex KTR 400 Internal Clamping Set from the KTR brand in Vietnam (Authorized Distributor for KTR Products in Vietnam).
– With over 15 years of reputation, Dai Hong Phat ensures to provide customers with 100% genuine KTR products of the highest quality and the best prices on the market.

Mr. Arthur Low, Director of KTR Singapore, visited Dai Hong Phat Company on a business trip.

mr-arthur-low-director-of-ktr-singapore-visited-dai-hong-phat-company-on-a-business-trip

Certificate of Dai Hong Phat as the Authorised Distributor of KTR Germany in Vietnam

ktr-goods-agent-certificate

3. Characteristics of The KTR Clampex 400 Locking Assembly:

– The Clampex KTR 400 Internal Clamping Set is manufactured by KTR Germany.
– Operating environment: -20°C to +160°C
– Self-centering capability with the highest performance data.
– The components of the shaft locking mechanism allow connection without clearance and friction between cylindrical shafts without grooves and keyways (shaft-to-shaft connection).
– It is a type of shaft-to-shaft connection without reverse clearance.
– It has the largest installation size compared to other taper shaft locking devices, enabling the transmission of the highest forces.
– The Clampex KTR 400 ensures center-to-center shaft connection without reverse backlash.
– Simultaneous transmission of torque and axial force.
– Torque up to 1,640,000 Nm.
– Easy disassembly thanks to simple clamping screws.

View more product “Clampex KTR 250 Internal Clamping Set“

MỌI THẮC MẮC HOẶC YÊU CẦU BÁO GIÁ, QUÝ KHÁCH VUI LÒNG LIÊN HỆ:
PHÒNG KINH DOANH
HOTLINE: 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of the KTR Clampex 400 Locking Assembly:

The Clampex KTR 400 Internal Clamping Set is commonly used in various industrial applications, including:
– Heavy-duty machinery and equipment requiring high torque transmission.
– Mining and drilling equipment.
– Large-scale conveyor systems.
– Power transmission systems in steel mills and foundries.
– Marine propulsion systems.
– Wind turbine generators.
– Hydraulic machinery and equipment.
– Industrial compressors and pumps.
– Paper and pulp processing machinery.
– Automotive manufacturing and assembly lines.
These applications benefit from the robust construction and high torque capacity of the Clampex KTR 400, ensuring reliable and secure shaft connections in demanding environments.

5. Technical of the KTR Clampex 400 Locking Assembly:

Catalogue Clampex KTR 400				Installation Clampex KTR 400

*Technical drawing of Clampex KTR 400 Internal Clamping Set*

Clampex KTR 400
d x D [mm]	Dimesions [mm]				Clampinng screws DIN ISO 4761 – 12.9				Transmittable torque or axial force
d x D [mm]	B	B1	B2	B3	M	Length	z = number	TA [Nm]	T [Nm]	Fax [kN]
24 x 50	51	45	41	16	M6	35	6	17	700	58
25 x 50	51	45	41	16	M6	35	6	17	730	58
28 x 55	51	45	41	16	M6	35	8	17	1100	79
30 x 55	51	45	41	16	M6	35	8	17	1180	79
32 x 60	51	45	41	16	M6	35	8	17	1270	79
35 x 60	51	45	41	16	M6	35	8	17	1390	79
38 x 65	51	45	41	16	M6	35	10	17	1880	99
40 x 65	51	45	41	16	M6	35	10	17	1980	99
40 x 75	51	45	41	16	M8	35	8	41	2850	143
42 x 75	51	45	41	16	M8	35	8	41	3000	143
45 x 75	51	45	41	16	M8	35	8	41	3250	144
48 x 80	70	62	58	23	M8	55	8	41	3450	144
50 x 80	70	62	58	23	M8	55	8	41	3600	144
55 x 85	70	62	58	23	M8	55	8	41	3950	144
60 x 90	70	62	58	23	M8	55	10	41	5400	180
65 x 95	70	62	58	23	M8	55	10	41	5850	180
70 x 110	86	76	70	28	M10	60	10	83	10200	291
75 x 115	86	76	70	28	M10	60	10	83	10950	292
80 x 120	86	76	70	28	M10	60	12	83	14000	350
85 x 125	86	76	70	28	M10	60	12	83	15000	353
90 x 130	86	76	70	28	M10	60	12	83	15800	351
