1. Dai Hong Phat Corp. is the specialized representative for supplying all KTR products in Vietnam:
– The KTR brand from Germany is a leading manufacturer of power transmission equipment worldwide. Since its establishment in 1950, KTR has consistently excelled in pioneering the design and innovation of various types of shaft couplings, hydraulic brakes, cooling systems, and hydraulic systems.
– We at Dai Hong Phat collaborate with KTR, a renowned manufacturer of power transmission equipment in Europe and worldwide.
– Dai Hong Phat Corp. is the importer and distributor of 100% genuine Bowex SD(-D) Curved-Tooth Gear Couplings from the KTR brand in Vietnam (Authorized Distributor for KTR Products in Vietnam).
– With over 15 years of reputation, Dai Hong Phat ensures to provide customers with 100% genuine KTR products of the highest quality and the best prices on the market.
Certificate of Dai Hong Phat as official dealer of KTR Germany in Vietnam
2. Characteristics of the KTR Bowex SD (-D) Curved-Tooth Gear Couplings:
– The KTR Bowex SD(-D) Curved-Tooth Gear Couplings are manufactured by KTR Germany.
– A type of shiftable coupling for easy disconnection and control of the shaft end
– Flexible shaft coupling requiring no maintenance, operating on the principle of gear teeth
– Polyamide material allows for permanent operation without maintenance, with excellent friction coefficient of the teeth
– Following the double-cardanic operation principle of KTR Bowex SD (-D), restoring forces can be disregarded with angular and radial displacements, eliminating periodic angular velocity oscillations
– Couplings can be assembled vertically or horizontally
– Smooth and hard surface (crystalline structure) along with high thermal stability and resistance to lubricants, fuels, hydraulic fluids, solvents, etc., making Polyamide an ideal material for components subjected to sliding forces, especially for coupling production.
View more product “Bowex Junior Curved-Tooth Gear Couplings“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the KTR Bowex SD (-D) Curved-Tooth Gear Couplings:
The KTR Bowex SD (-D) Curved-Tooth Gear Couplings are designed for continuous operation with moderate acceleration and low impact loads, primarily used in hydraulic pumps, hydraulic power units, vacuum pumps, and more. It also features overload protection.
4. Technical of the KTR Bowex SD (-D) Curved-Tooth Gear Couplings:

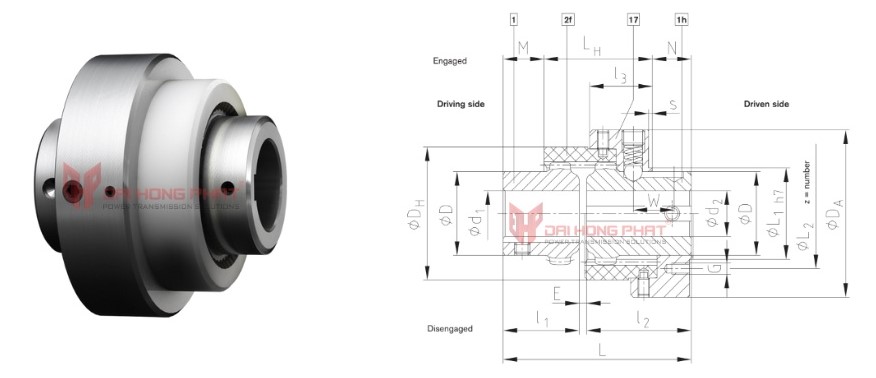

| Catalogue KTR Bowex SD (-D) |
Installation KTR Bowex SD (-D) |
||||||
 |
|
| Model | Finish bore d1, d2 | Dimensions [mm] | |||||||||||||
| d1 | d1 max. | d2 max. | E | l1 | l2 | L | LH | l3 | M | W | N | D | DH | DA | |
| 24 SD | 24 | 24 | 4 | 26 | 50 | 80 | 52 | 31 | 10 | 19 | 18 | 36 | 58 | 78 | |
| 28 SD | 86 | 28 | 28 | 4 | 40 | 55 | 99 | 57 | 33 | 21.5 | 21.5 | 20.5 | 44 | 70 | 88 |
| 32 SD | 32 | 32 | 4 | 40 | 55 | 99 | 58 | 33 | 20.5 | 21.5 | 20.5 | 50 | 84 | 100 | |
| 45 SD | 45 | 45 | 4 | 42 | 60 | 106 | 63 | 37 | 21.5 | 22.5 | 21.5 | 65 | 100 | 125 | |
| 48 | 50 | 114 | 29.5 | ||||||||||||
| 65 SD | 65 | 65 | 4 | 55 | 70 | 129 | 77 | 37 | 28 | 25 | 24 | 95 | 140 | 156 | |
| 80 SD | finis | 90 | 90 | 6 | 90 | 90 | 186 | 96 | 47 | 56 | 35 | 34 | 124 | 175 | 195 |
| 100 SD | pro | 100 | 100 | 8 | 110 | 110 | 228 | 113 | 55 | 72 | 43 | 43 | 152 | 210 | 235 |
| 125 SD | 125 | 125 | 10 | 140 | 140 | 290 | 149 | 70 | 89 | 52 | 52 | 192 | 270 | 298 | |
5. Why choose Dai Hong Phat Corp. as your supplier for KTR Nylon Gear Couplings?
– You will be able to purchase 100% genuine Bowex SD(-D) Nylon Gear Coupling directly imported by Dai Hong Phat from the manufacturer.
– You can trust Dai Hong Phat to protect you from risks and counterfeit products of Fenner.
– Dai Hong Phat provides complete CO/CQ documents for Nylon Gear Coupling.
– KTR products are always available in Dai Hong Phat’s warehouse, ensuring fast delivery to customers.
– Dai Hong Phat will provide technical drawings of the KTR products you purchase upon request.
– Dai Hong Phat offers dedicated support and consultation to customers regarding bolted flexible couplings, with a team of highly skilled technical specialists.
– Dai Hong Phat provides free consultation on optimal solutions for your plant regarding genuine Curved-Toot Gear Couplings.
– Dai Hong Phat provides customers with genuine Bowex SD(-D) Curved-Tooth Gear Couplings catalogues.
– Dai Hong Phat offers free technical parameter conversion and customization of KTR Gear Couplings according to customer requirements.
– Dai Hong Phat provides nationwide 24/7 delivery services, minimizing downtime for your machinery.
– Dai Hong Phat has a professional workshop for custom machining according to customers’ specific requirements.
