BOWEX FLE-PA CURVED-TOOTH FLANGE COUPLING

The KTR Bowex FLE-PA Flange Couplings are a rigid torsionally stiff flange face coupling made of nylon/steel materials designed for diesel engine drives combined with hydraulic pump units.

Description

5/5 - (3 votes)

1. Dai Hong Phat Corp. is the specialized representative for supplying all KTR products in Vietnam:

– The KTR brand from Germany is a leading manufacturer of power transmission equipment worldwide. Since its establishment in 1950, KTR has consistently excelled in pioneering the design and innovation of various types of shaft couplings, hydraulic brakes, cooling systems, and hydraulic systems.
– We at Dai Hong Phat collaborate with KTR, a renowned manufacturer of power transmission equipment in Europe and worldwide.
– Dai Hong Phat Corp. is the importer and distributor of 100% genuine Bowex FLE-PA Flange Couplings from the KTR brand in Vietnam (Authorized Distributor for KTR Products in Vietnam).
– With over 15 years of reputation, Dai Hong Phat ensures to provide customers with 100% genuine KTR products of the highest quality and the best prices on the market.

mr-arthur-low-director-of-ktr-singapore-visited-dai-hong-phat-company-on-a-business-trip

Certificate of Dai Hong Phat as the Authorised Distributor of KTR Germany in Vietnam

ktr-goods-agent-certificate

2. Characteristics of the KTR Bowex FLE-PA Flange Couplings:

– The Bowex FLE-PA Flange Couplings are manufactured by KTR Germany
– The BoWex FLE-PA is a rigid torsionally stiff flange face coupling made of nylon/steel materials designed for diesel engine drives combined with hydraulic pump units.
– The FLE-PA flange face comprises glass-fiber-reinforced polyamide with high mechanical strength and thermal stability. The outer toothed flange is made of steel.
– The BoWex FLE-PA allows for very short assembly lengths and easy installation without requiring any additional tools for alignment. It comes in various sizes and all common SAE connection sizes. Special connection flanges are also available.
– High torsional stiffness, operates without resonance amplification.
– Maintenance-free due to the combination of nylon/steel materials.
– The PA flange face features high mechanical strength and thermal stability.
– Torque range from 240 to 5,300 Nm.
– Available for SAE and DIN pump shafts.
– Maximum circumferential speed vmax=67 m/s.
– Bore diameter 125 mm.

View more product “Bowex-Elastic HE1(HE2) Flange Coupling“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of the KTR Bowex-FLE-PA Flange Couplings:

The Bowex FLE-PA Flange Couplings are suitable for all continuous drives with medium acceleration and low impact loads, primarily used for hydraulic pumps, hydraulic power units, and vacuum pump applications. Additionally, the coupling provides overload protection functionality.

4. Technical of the KTR Bowex FLE-PA Flange Couplings:

Catalogue KTR Bowex FLE-PA				Installation KTR Bowex FLE-PA

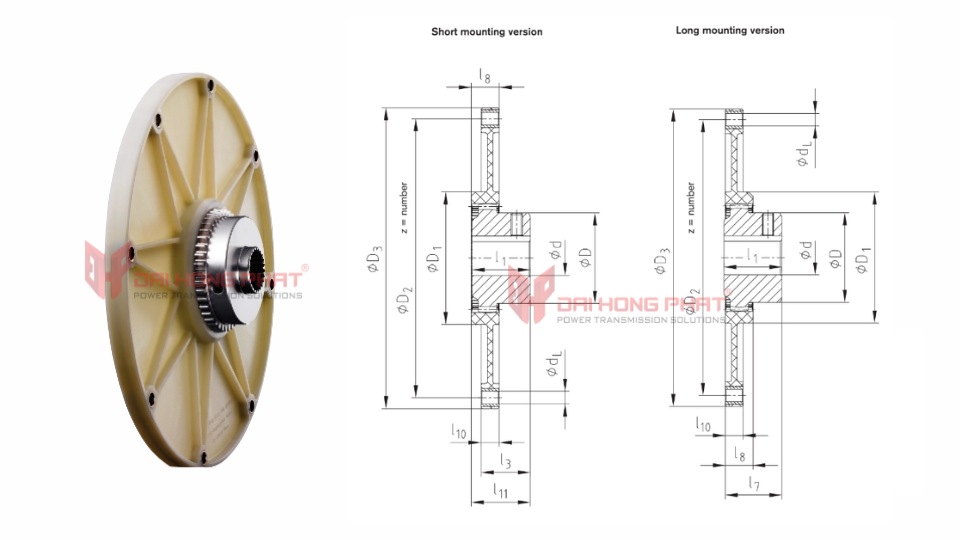

*Technical drawing of the KTR Bowex FLE-PA Flange Couplings*

Size	Torque TK [Nm]			Pilot bore	Finish bore d		Dimensions [mm]
Size	TKN	TK max.	TKW	Pilot bore	Min.	Max.	D	D1	l1	l3	l7	l8	l10	l11
48	240	600	120	–	20	48	68	100	50	41	50	20	13	48
T 48	300	750	150	13	15	48	68	100	50	38	45	20	13	46
T 55	450	1125	225	17	20	55	85	115	50	37	48	20	13	48
65	650	1600	325	21	30	65	96	132	55	45	54	24	21	51
T 65	800	2000	400	21	30	65	96	135	55	45	54	27	21	51
T 70	1000	2500	500	26	30	70	100	153	60	48	30	27	21	57
80	1200	3000	600	31	35	90	124	170	90	78	30	30	21	87
T 80	1500	3750	750	31	35	90	124	170	90	78	30	30	21	87
100	2050	5150	1025	38	40	100	152	265	110	78	35	35	21	110
T 100	2500	6250	1250	38	40	100	152	265	110	78	35	35	21	110
125	4250	10700	2125	45	50	125	192	250	140	113	50	20	28	97
T 125	5300	13250	2650	45	50	125	192	250	140	113	50	50	28	97
