1. Dai Hong Phat Corp. is the specialized representative for supplying all KTR products in Vietnam:
– The KTR brand from Germany is a leading manufacturer of power transmission equipment worldwide. Since its establishment in 1950, KTR has consistently excelled in pioneering the design and innovation of various types of shaft couplings, hydraulic brakes, cooling systems, and hydraulic systems.
– We at Dai Hong Phat collaborate with KTR, a renowned manufacturer of power transmission equipment in Europe and worldwide.
– Dai Hong Phat Corp. is the importer and distributor of 100% genuine Bowex-Elastic HE1(HE2) Flange Couplings from the KTR brand in Vietnam (Authorized Distributor for KTR Products in Vietnam).
– With over 15 years of reputation, Dai Hong Phat ensures to provide customers with 100% genuine KTR products of the highest quality and the best prices on the market.
Certificate of Dai Hong Phat as the Authorised Distributor of KTR Germany in Vietnam
2. Characteristics of the KTR Bowex-Elastic HE1(HE2) Flange Couplings:
– The Bowex-Elastic HE1(HE2) Flange Couplings are manufactured by KTR Germany
– Available in 5 coupling sizes and 6 flange face sizes
– Torque range: from 165 Nm to 5000 Nm
– Shaft diameter: from 42 mm to 90 mm
– Rotational speed: from 6200 rpm to 3000 rpm
– Polyamide material allows for maintenance-free permanent operation with an excellent tooth friction coefficient.
– Vibration damping
– High flexibility of flange face coupling with SAE and special flange face sizes.
View more product “Bowex Junior M Curved-Tooth Gear Couplings“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the KTR Bowex-Elastic HE1(HE2) Flange Couplings:
The KTR Bowex-Elastic HE1(HE2) Flange Couplings are used for all continuous drive systems with medium acceleration and low impact loads. It is primarily used for hydraulic pumps, hydraulic power units, and vacuum pumps,… while also serving the function of overload protection.

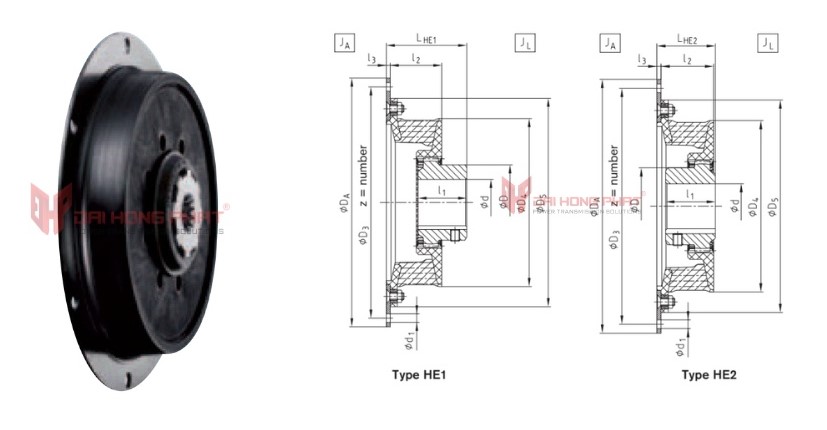

4. Technical of the KTR Bowex-Elastic HE1(HE2) Flange Couplings:
| Catalogue KTR Bowex-Elastic HE1(HE2) |
Installation KTR Bowex-Elastic HE1(HE2) |
||||||
 |
|
| Size | Elastomer hardness [Shore A] | Bore d (mm) | Torque [Nm] | l3 | D5 | l2 | D4 | D | l1 | LHE1 | LHE2 | Speed nmax. | |
| Pilot bored | Max. | TKN | mm | mm | mm | mm | mm | mm | mm | mm | rpm | ||
| 42 HE | T40 | – | 42 | 165 | 4 | 180 | 44.5 | 145 | 65 | 42 | 70 | 50 | 6200 |
| T50 | 205 | ||||||||||||
| T65 | 260 | ||||||||||||
| 48 HE | T40 | – | 48 | 250 | 4 | 198 | 45 | 163 | 68 | 50 | 78 | 50 | 5600 |
| T50 | 315 | ||||||||||||
| T65 | 400 | ||||||||||||
| 65 HE | T40 | 21 | 65 | 440 | 5 | 244 | 55.5 | 205 | 96 | 55 | 85 | 61 | 4500 |
| T50 | 550 | ||||||||||||
| T65 | 720 | ||||||||||||
| 80 HE | T40 | 31 | 90 | 950 | 6 | 316 | 56 | 265 | 124 | 90 | 132 | 80 | 3600 |
| T50 | 1300 | ||||||||||||
| T65 | 1750 | ||||||||||||
| G 80 HE | T40 | 31 | 90 | 1600 | 6 | 356 | 66 | 300 | 124 | 90 | 142 | 84 | 3000 |
| T50 | 2200 | ||||||||||||
| T65 | 2900 | ||||||||||||
5. Why choose Dai Hong Phat Corp. as your KTR Nylon Gear Couplings supplier?
– You will be able to purchase 100% genuine Bowex-Elastic HE1(HE2) directly imported by Dai Hong Phat from the manufacturer.
– You can trust Dai Hong Phat to protect you from risks and counterfeit products of Fenner.
– Dai Hong Phat provides complete CO/CQ documents for Nylon Gear Coupling.
– KTR products are always available in Dai Hong Phat’s warehouse, ensuring fast delivery to customers.
– Dai Hong Phat will provide technical drawings of the KTR products you purchase upon request.
– Dai Hong Phat offers dedicated support and consultation to customers regarding bolted flexible couplings, with a team of highly skilled technical specialists.
– Dai Hong Phat provides free consultation on optimal solutions for your plant regarding genuine Curved-Toot Gear Couplings.
– Dai Hong Phat provides customers with genuine Bowex-Elastic HE1(HE2) Flange Couplings catalogs.
– Dai Hong Phat offers free technical parameter conversion and customization of KTR Gear Couplings according to customer requirements.
– Dai Hong Phat provides nationwide 24/7 delivery services, minimizing downtime for your machinery.
– Dai Hong Phat has a professional workshop for custom machining according to customers’ specific requirements.
