HENFEL-RINGFEDER HYDRAULIC COUPLINGS TYPE HLE-R

The Henfel Hydrodynamic Couplings Type HLE-R are designed to operate efficiently even with low electric motor loads, even when the driven machinery is loaded or stopped, and the motor decelerates instantly. This coupling limits the maximum torque to effectively protect both the motor and the driven machinery, as well as the products being manufactured.

Dai Hong Phat Corp Shaft Coupling is an authorized representative and genuine distributor of Henfel-Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Category: Henfel Hydraulic Couplings Tags: Henfel Vietnam, Fluid Drive Coupling

Description

5/5 - (1 vote)

Let’s learn about Henfel-Ringfeder Hydraulic Couplings type HLE-R with Dai Hong Phat through the following article!

1. About Dai Hong Phat – Ringfeder Germany

– Dai Hong Phat is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and damping solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction spring”, Ringfeder has become a globally prestigious symbol of quality and reliability.
– At the end of 2015, HENFEL was acquired by Ringfeder Germany Group, one of the famous industrial groups in the global market for transmission equipment.
– Henfel-Ringfeder Hydraulic Couplings type HLE-R products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

Learn more about: Other Henfel-Ringfeder Hydraulic Couplings

2. Characteristics of the Henfel Hydrodynamic Couplings Type HLE-R:

– Henfel Hydrodynamic Couplings Type HLE-R are manufactured by Ringfeder Henfel/Brazil.
– Low inertia electric motor, even when the driven machine is loaded or stopped, the motor immediately slows down.
– The coupling can smoothly accelerate even with heavy loads without requiring oversized motors.
– Maximum torque.
– Henfel Hydrodynamic Couplings Type HLE-R adjust the maximum torque transmitted by simply adjusting the mass of the operating medium inside the coupling.
– Even load distribution among all motors in the case of multiple drives. Startup can be sequenced to avoid high power consumption levels.
– Fully protected against overheating. In case the secondary wheel is blocked (overload), the fuse plug activates the drum brake of the device, interrupting the transmission process. Thermal electrical devices can be used to monitor temperature and shut down the drive at the set maximum temperature.
– Free power transmission, as there is no mechanical contact between the primary and secondary wheels.
– Excellent economy through the protection of all electrical and mechanical transmission components, even during frequent speed changes or reverse rotations occur at high frequency.

View more product “Henfel Hydrodynamic Couplings Type HFF-RR“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of the Henfel Hydraulic Coupling Type HLE-R:

The Henfel Hydrodynamic Couplings Type HLE-R is utilized in various industrial applications where there is a need to limit the maximum torque to protect both the motor and the driven machinery. This coupling is commonly found in key industries, expanding industrial facilities, and is supported by mechanical engineers for technical assistance.

4. Technical of the Henfel Hydrodynamic Couplings Type HLE-R:

Catalogue Henfel HLE-R				Installation Henfel HLE-R

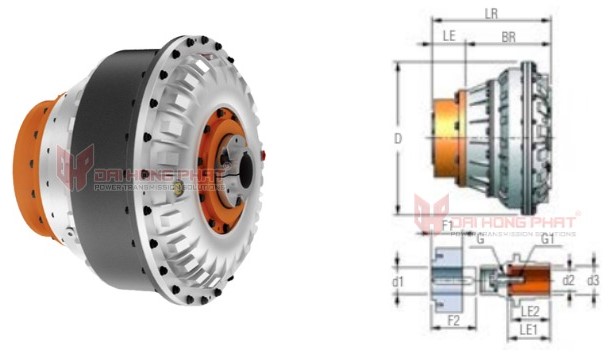

*Technical drawing of the Hydrodynamic Couplings Type HLE-R*

Model	D	LR	BR	LE	d1 max	d2 max	d3	LE1	LE2 max	F1	F2	G	G1*
HLE -R 30	332	261	184	77	55	55	—	—	100	72	—	M20	M16
HLE -R 50	376	303	226	77	65	55	—	—	110	72	125	M20	M20
HLE -R 75	400	307	230	77	65	55	72	120	110	72	100	G1”	M20
HLE -R 100	460	359	257	102	80	65	86	125	110	96	140	G 1.1/4”	M20
HLE -R 150	528	359	257	102	80	65	86	125	110	96	150	G 1.1/4”	M20
HLE -R 250	574	403	297	106	80	80	106	155	140	100	125	G 1.1/4”	M20
HLE -R 350	634	449	333	116	100	80	115	170	155	111	157	G 1.1/2”	M24
HLE -R 500	719	536	384	152	125	100	130	200	185	144.5	190	G 1.1/2”	M24
HLE -R 750	790	564	412	152	125	100	130	200	185	144.5	190	G 1.1/2”	M24
HLE -R 1000	910	603	440	163	140	110	150	212	195	154.5	185	G 1.3/4”	M24
HLE -R 1500	1040	682	493	189	160	110	165	265	250	180	225	G 1.3/4”	M24
HLE -R 2500	1170	757	547	210	180	120	165	265	250	199.5	295	G 1.3/4”	M24
HLE -R 2750	1295	880	670	210	180	130	180	300	280	199.5	350	G 2.1/4”	M36
